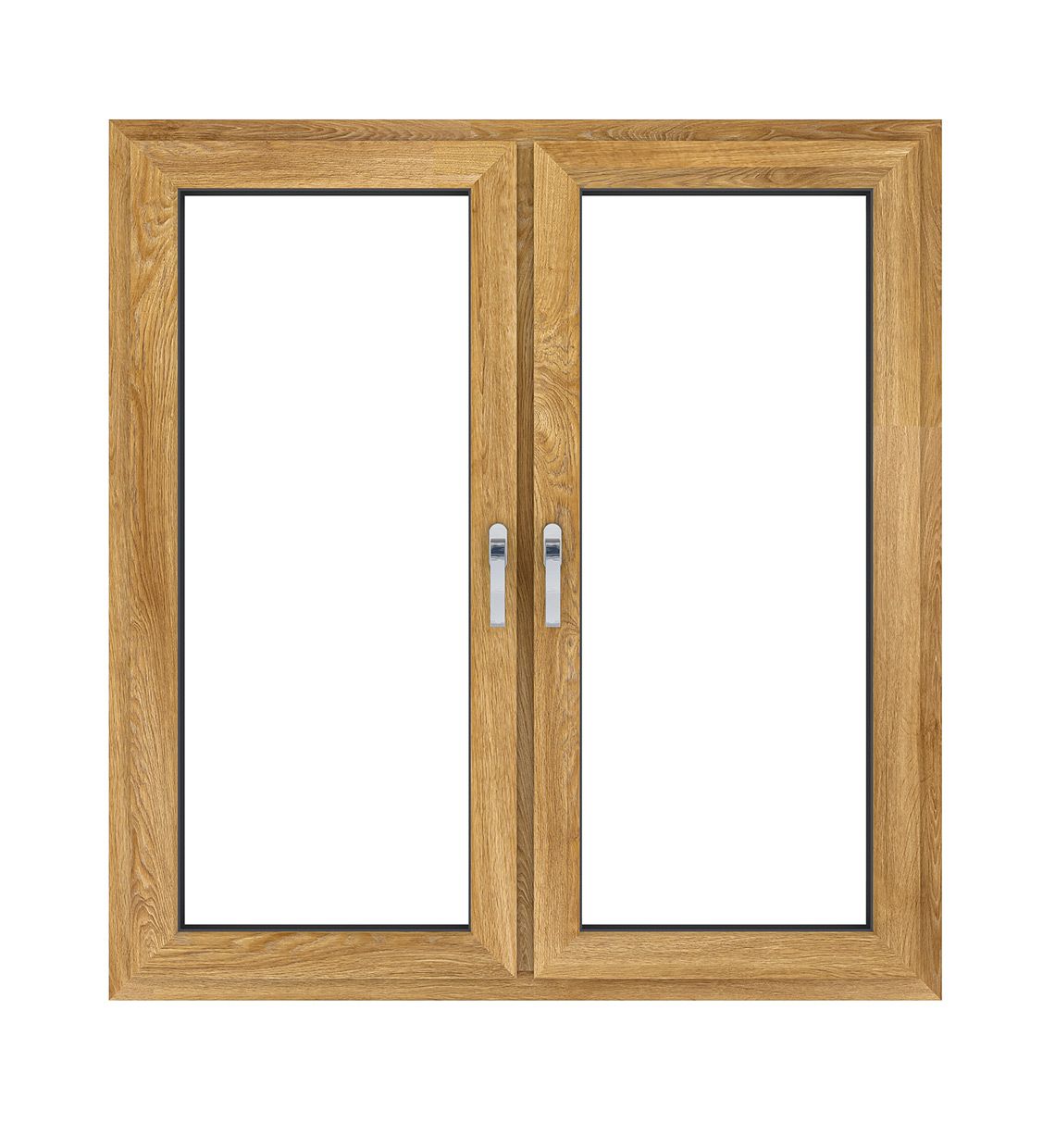

aluplast · Tilt-turn window
IDEAL 8000 windows. A solution without compromise.
When you choose windows in the IDEAL 8000 system, you are choosing a top-of-the-range product in which the quality of the profiles and the materials used are not compromised.
IDEAL 8000 is a combination of state-of-the-art technical solutions for above-average properties, guaranteeing warmth, silence, safety and exceptional aesthetics of the window. This is an excellent option for all those who want the comfort of top-quality housing.
The thoughtful design and profile geometry, combined with available technologies, ensure excellent performance, long-term preservation of window function and trouble-free operation.

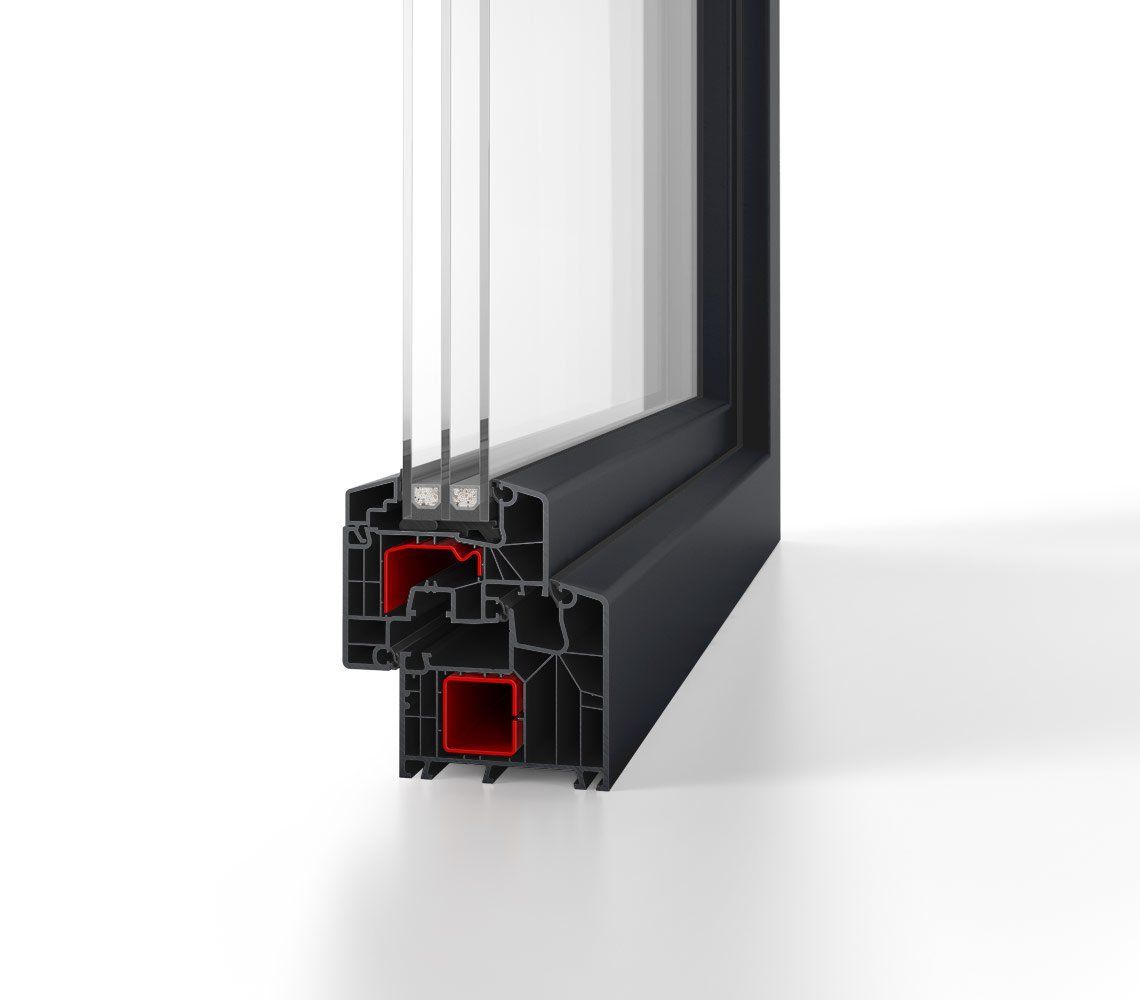

Technical characteristics
The numbers
- Frame depth
- 85 mm
- Glass up to
- 51 mm
- Seals
- 3
- Chambers
- 6
- Uf (frame)
- 1.0 W/m²K
- Uw (whole window)
- 0.67 W/m²K
- Best for
- energy-efficient & passive houses
Uf / Uw are aluplast's published European values (W/m²K) — not the US U-factor scale. Lower is better.
Features
What makes IDEAL 8000 different

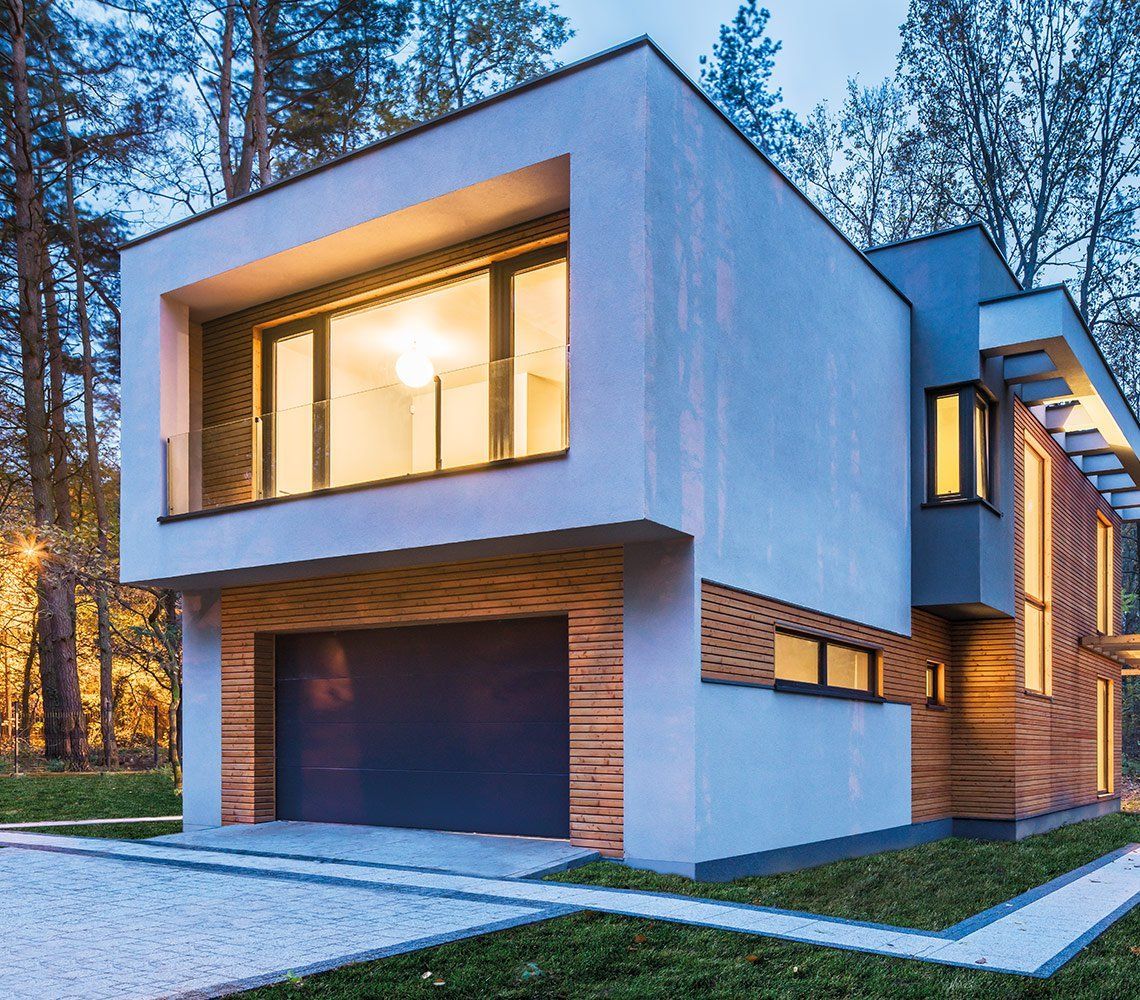

The hidden power of technology
Windows in the IDEAL 8000 system are a combination of state-of-the-art technical solutions for above-average properties, guaranteeing warmth, silence, security and exceptional window aesthetics. This is an excellent option for all those who want the comfort of top-quality housing. The thoughtful design and profile geometry, combined with available technologies, ensure excellent statics, long-term preservation of window function and trouble-free operation.

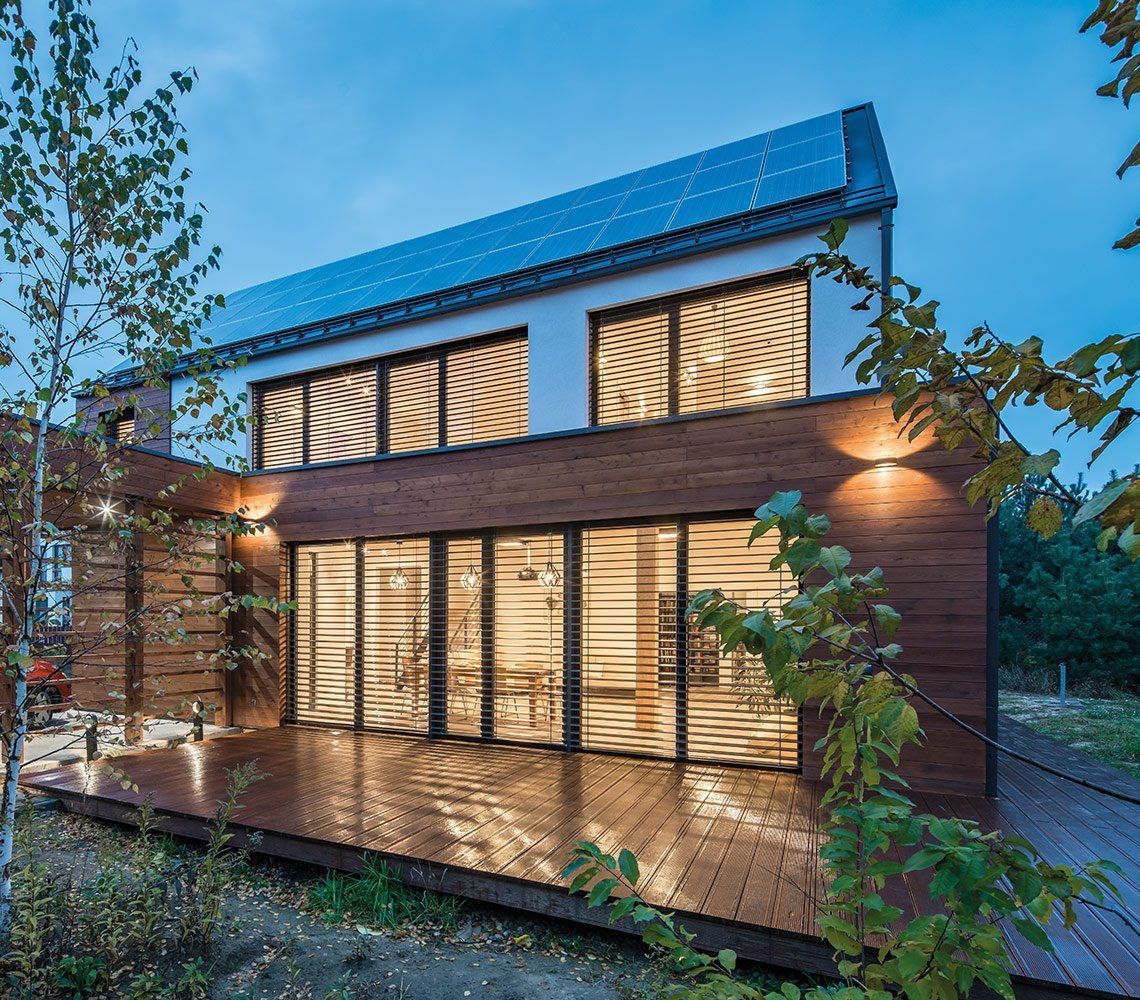

Warmth as standard
The Uf = 1.0 W/m²K thermal transmittance coefficient of the profiles obtained in the study places the IDEAL 8000 system among the solutions of primary importance for investors interested in energy-efficient construction. The possibility of using energy-efficient glazing packages with a width of up to 51 cm makes it possible to create windows characterized by very low thermal transmittance. For example, a reference window with dimensions of 1230 x 1480 mm using a glazing package with a Ug=0.5 W/m²K coefficient achieves a thermal insulation coefficient of Uw = 0.76 W/m²K, which meets the requirements for windows in so-called passive construction.
Enhanced security

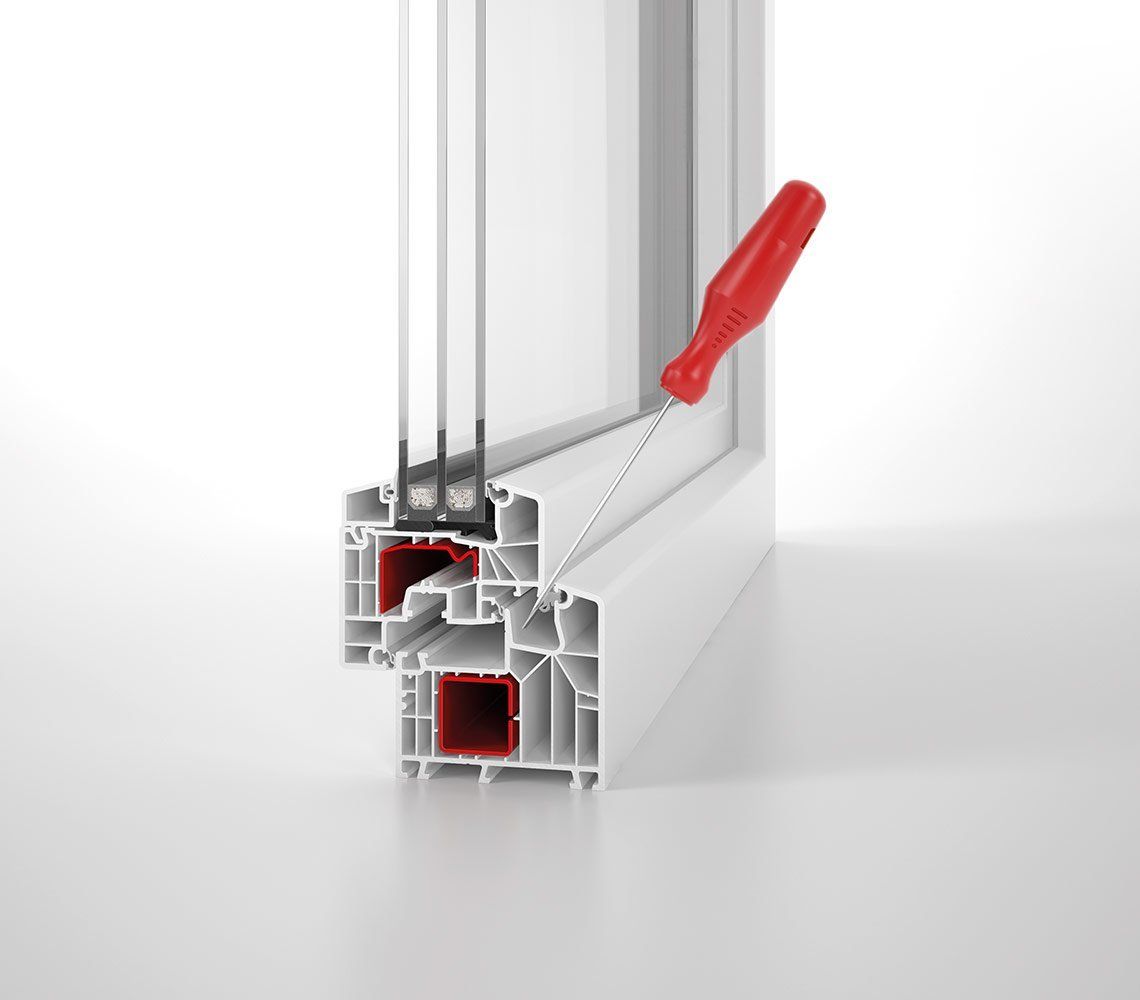

Safetec inside – for even better security against break-in. The Ideal 8000 system is one of the few systems on the market with the "classic center seal." A special extruded center rebate, to which a third, inner seal is firmly attached, makes it difficult to pry away the sash, blocking the possibility of reaching the hardware. Using the optional "bonding inside" glass bonding technology, thanks to a perimeter gap with glue, permanently connecting the glass to the profile, we effectively prevent the glass from being pushed out of the sash.
Reliability
The three-seal system used in the IDEAL 8000 series means not only greater weather tightness of the entire structure, but also a significantly longer life of the hardware mechanisms, which are isolated from external conditions in the dry chamber. This ensures better operation of the hardware components and trouble-free use of the windows.

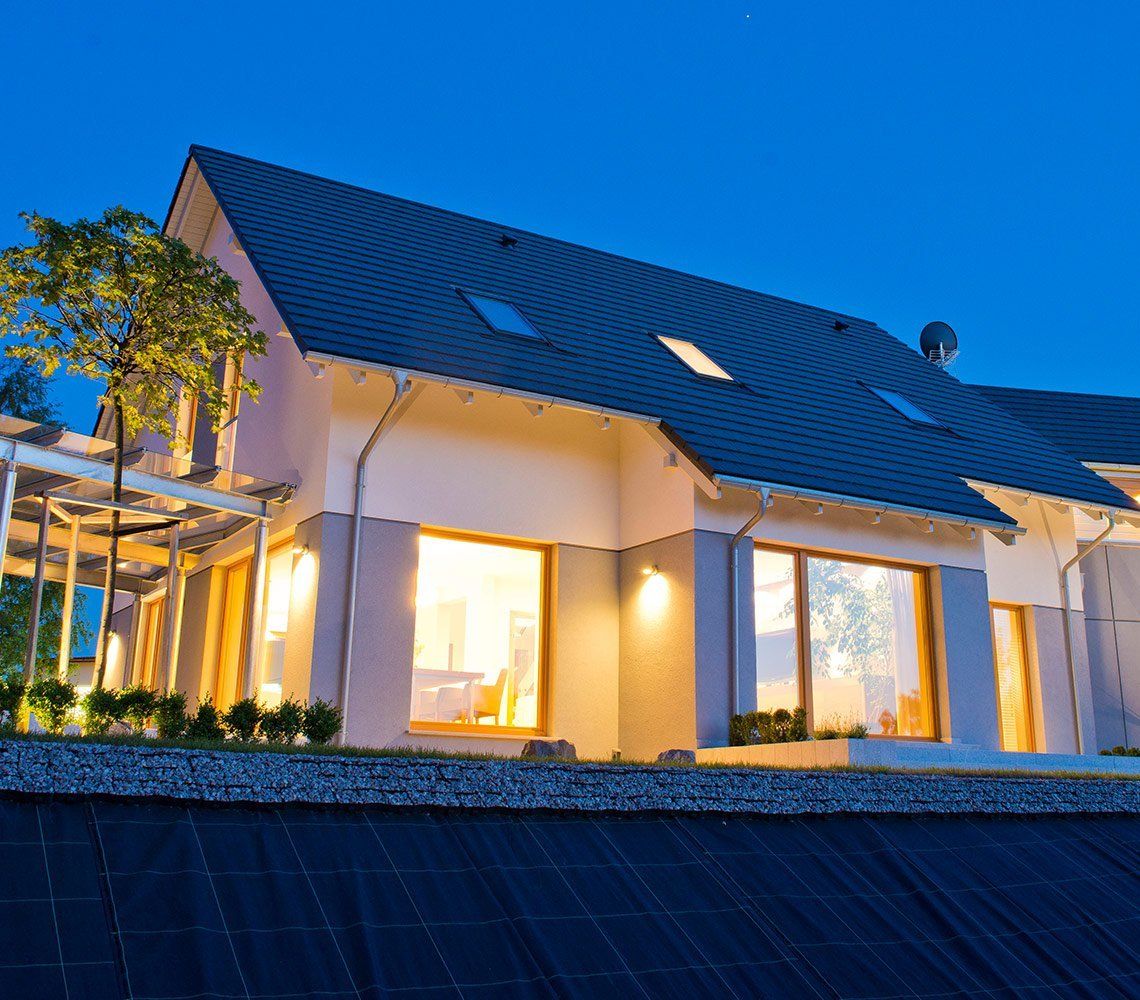

Aesthetics and more light
The attractive combination of a high frame with a lowered sash (the height of the entire assembly is 119 mm) makes it possible to obtain very narrow, sightlines in the finished windows, after they have been built up with insulating materials. Thus, we increase both the light supply and passive energy gains.
Colour palette
Colours & finishes
Standard
White
Aludec
High-quality decorative structures distinguished by a unique fine-grained matt-sand surface with the appearance of powder-coated aluminum.
ap03 Anthracite Grey
ap04 Jet Black
ap07 Alux DB
ap08 Basalt Grey
ap12 Umbra Grey
ap14 Quartz Grey
ap36 Traffic White
ap37 Window Grey
Modern Greys
ap40 Anthracite Grey
ap60 Anthracite Grey, sand texture
ap61 Gray, sand texture
ap63 Metbrush Aluminium
ap65 Quartz Grey, sand texture
ap71 Jet Black Matt
ap79 Alux DB
ap86 Papyrus White
ap90 Silk Grey
ap91 Concrete Grey
Natural Timber
ap01 Oak Special
ap02 Natural Oak
ap11 Douglas
ap23 Golden Oak
ap25 Palisander
ap26 Dark Brown Matt
ap27 Walnut
ap28 Walnut Terra
ap29 Walnut Amaretto
ap75 Sheffield Oak Light
ap93 Sheffield Oak Brown
ap94 Sheffield Oak Grey
ap95 Newcastle Oak Khaki
Other
ap05 Mahogany
ap06 Dark Oak
ap15 Oregon III
ap30 Dark Green
ap32 Dark Red
ap34 Grey
ap41 Steel Blue
ap42 Agate Grey
ap43 Green
ap44 White
ap47 Diamond Blue
ap50 Cream White
ap52 Birch
ap62 Basalt Grey
ap69 Dark Graphite
ap87 Beige Grey
ap88 Quartz Grey
Woodec
A faithfully preserved appearance of real wood and a unique character combined with all the advantages of a Pvcu window – this is what the new woodec finish offers.
ap19 Turner Oak Malt
ap20 Sheffield Oak Alpine
ap21 Sheffield Oak Concrete
ap22 Turner Oak Toffee
ap35 Turner Oak Walnut
ap39 Turner Oak Amber
Pricing
Price out IDEAL 8000
Send rough sizes and how many. We install around Springfield, MO and ship everywhere else.
Prefer email? hello@swingtilt.com

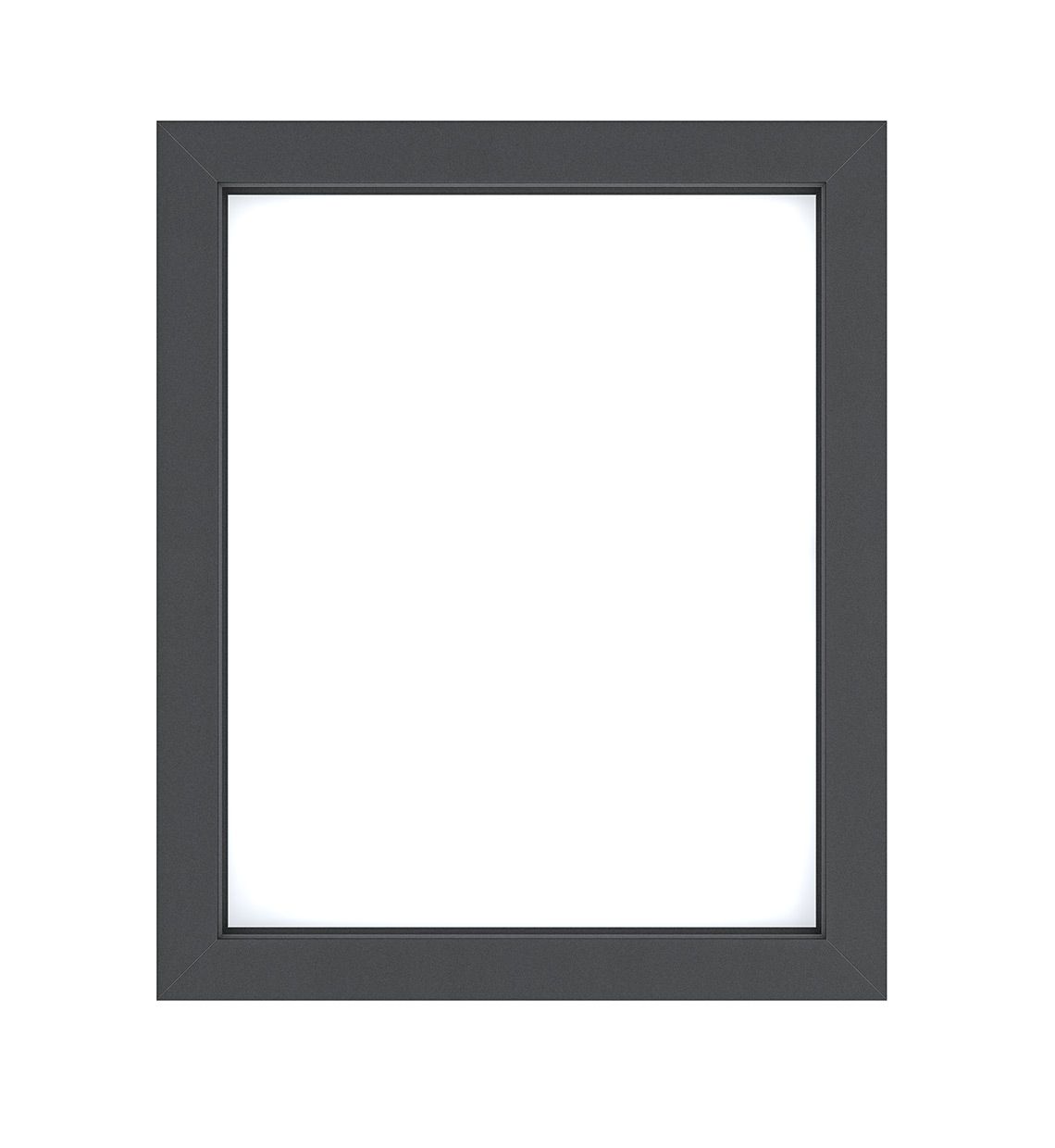

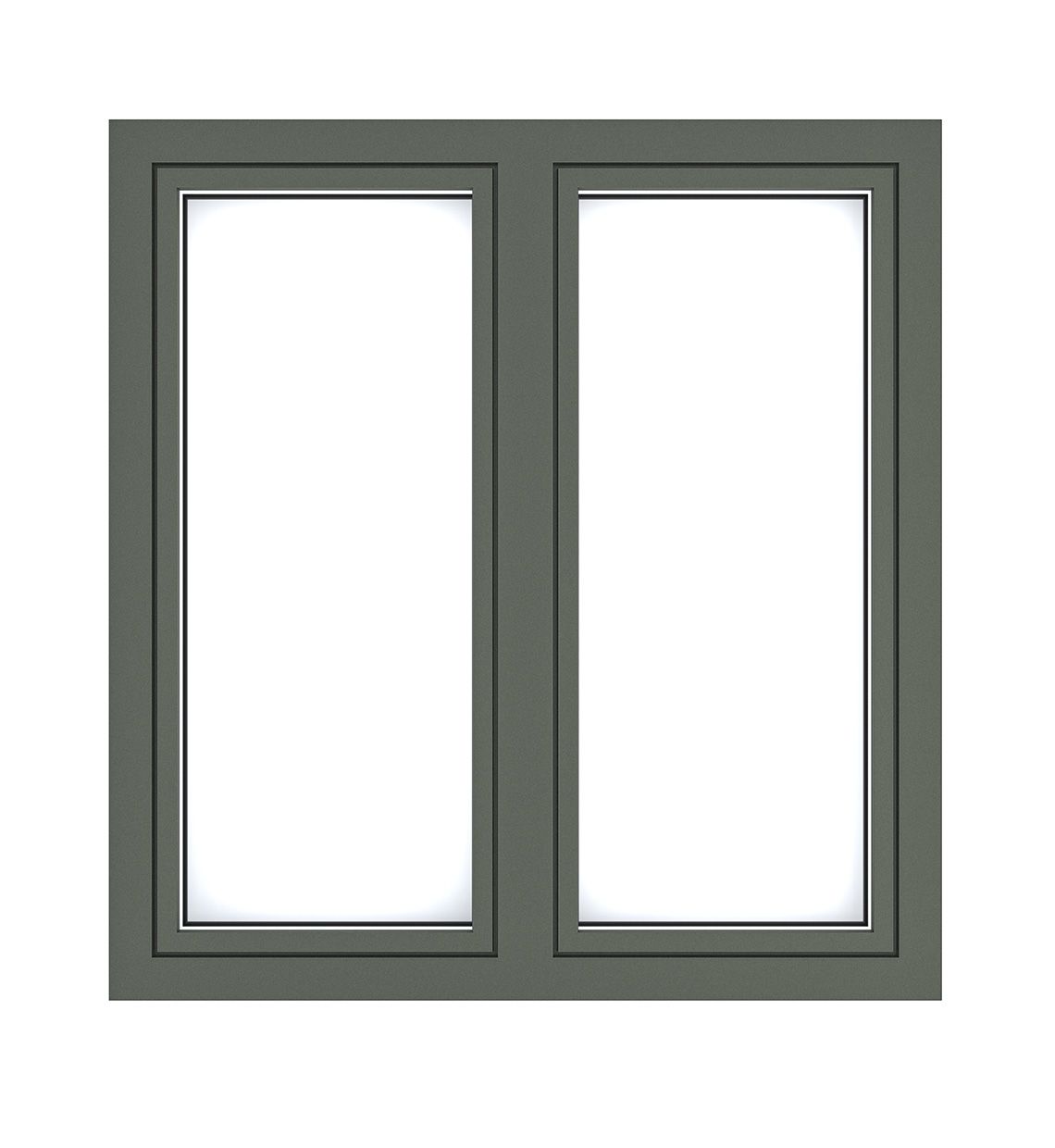

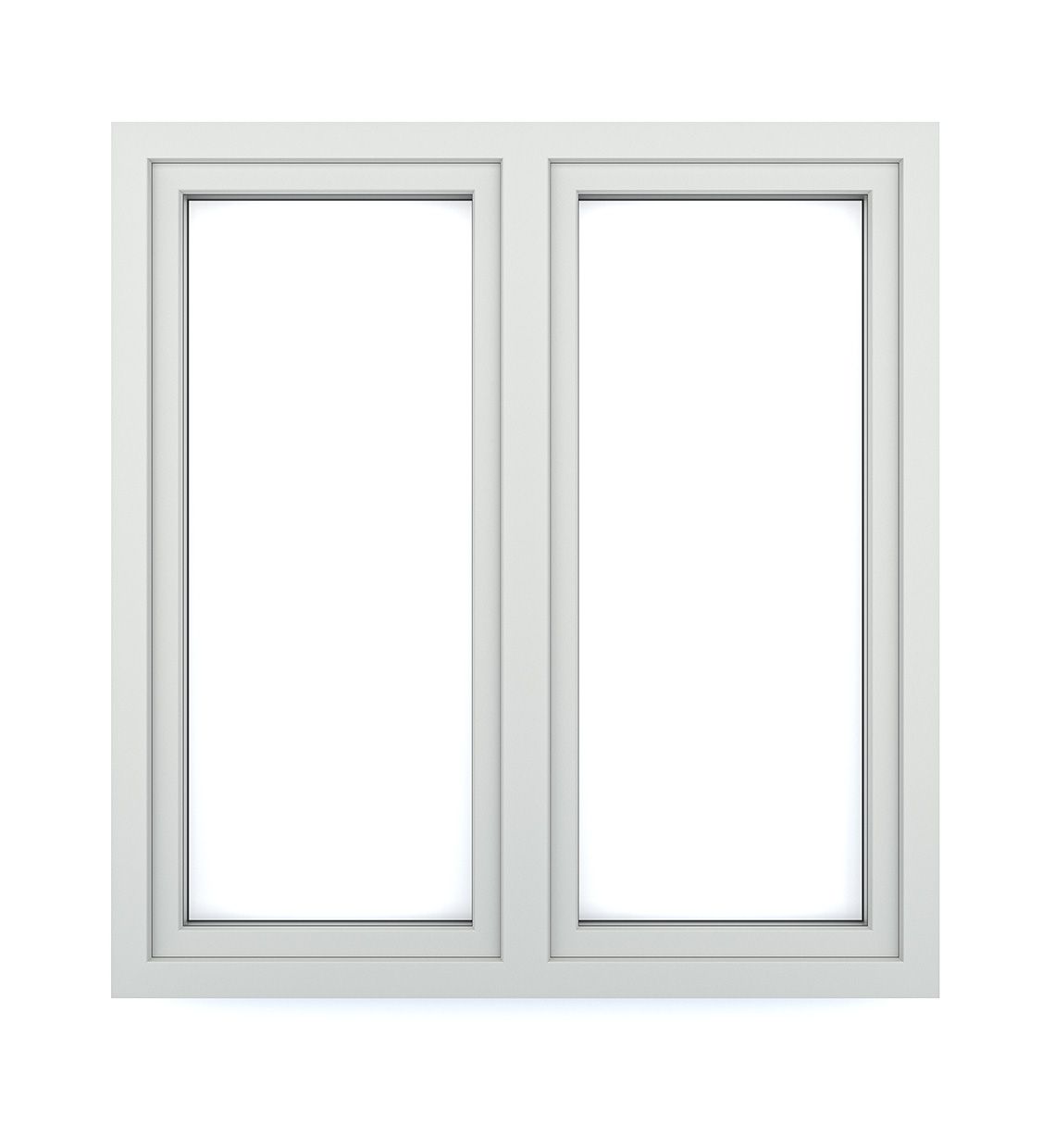

Other tilt-turn window systems
