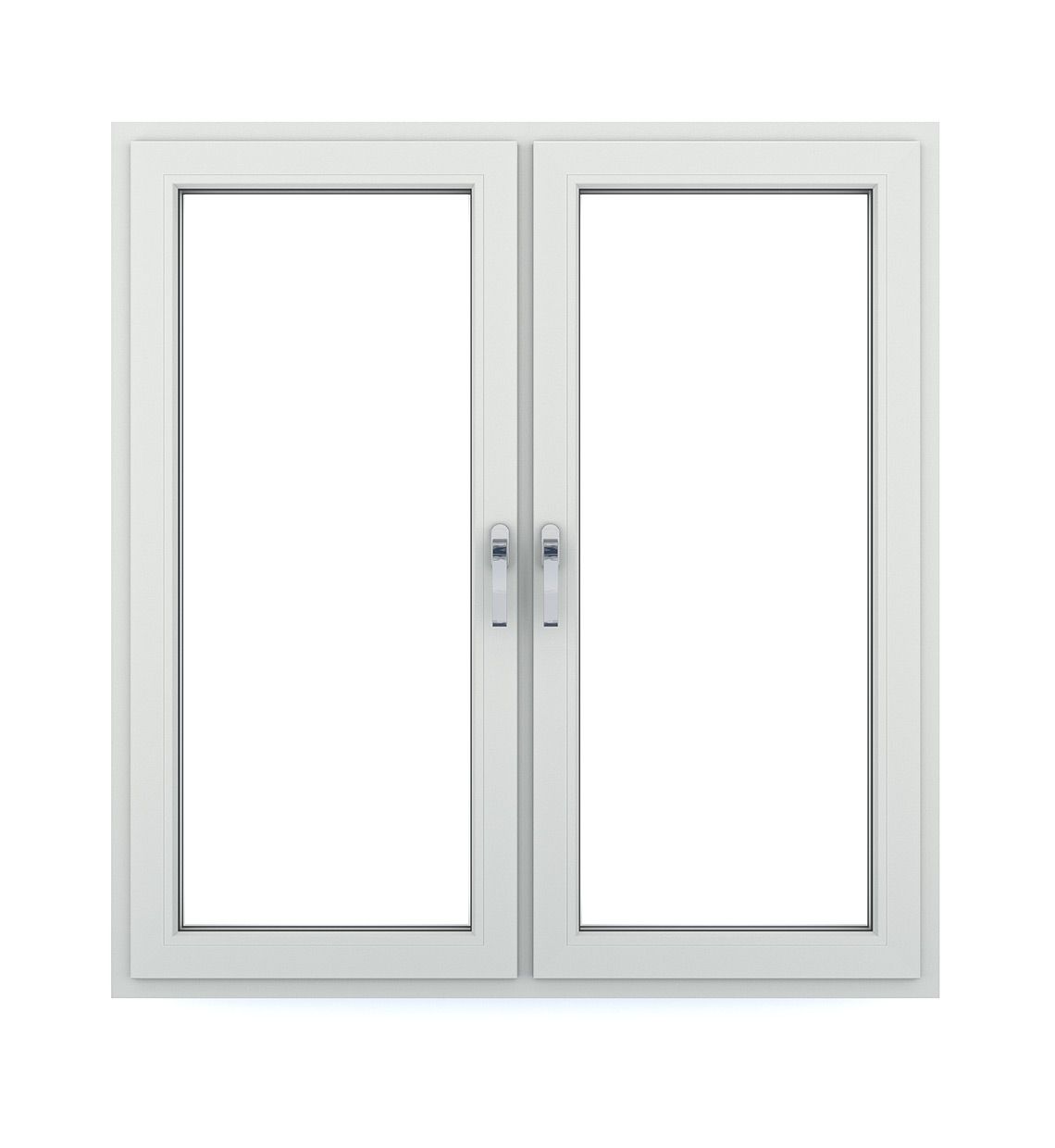

aluplast IDEAL 4000

aluplast · Tilt-turn window

IDEAL 4000 windows. Unrivaled for renovation.

Windows based on the IDEAL 4000 system are perfect replacement for old joinery in an apartment or house, especially when we want to maintain the slim appearance of the frames in the existing windows.

The IDEAL 4000 window system is one of the most comprehensive systems in terms of profile shapes availability. A wide selection of configurations allows for easy customization of style to personal preferences. Original design combined with the variety of system solutions provides unlimited creative possibilities, both technically as well as aesthetically.

Ask for a price360° showroom

Technical characteristics

The numbers

Frame depth
70 mm
Glass up to
48 mm
Seals
2
Chambers
5–6
Uf (frame)
up to 1.2 W/m²K
Uw (whole window)
up to 0.8 W/m²K
Frame styles
non-flush, half-flush, round line
Best for
renovation, replacement windows

Uf / Uw are aluplast's published European values (W/m²K) — not the US U-factor scale. Lower is better.

Features

What makes IDEAL 4000 different

Windows exactly as you want them

Windows exactly as you want them

Gently rounded lines of the Roundline version or distinct contours of the Classic line version. Semi-recessed or flush sash variant. Regardless of the decision, one thing is certain – windows in the IDEAL 4000 system will be exactly as you want them. You can choose from a wide range of basic decorative foils or premium woodec and aludec structures. Profiles with anthracite cores are also available, allowing for an even better match of windows to modern arrangements in shades of gray.

Keep the heat inside

Keep the heat inside

Despite its relatively small installation depth, a window in the IDEAL 4000 system can still be energy-efficient. In a configuration with the new half-recessed sash, with the option of glazing with glazing units up to 48 mm wide, it is possible to create even warmer window constructions in the IDEAL 4000 system (up to Uw = 0.85 W/m²K).

More light in the interior

More light in the interior

In the case of renovations, where there is often no possibility of enlarging the window opening, the reduced height of the frame and sash, typically only 114 mm, is particularly advantageous. A narrower frame means a larger glazed area, resulting in more light in the rooms.

Frame versions

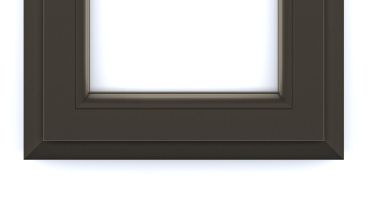

Round line (inside view)
Round line (inside view)

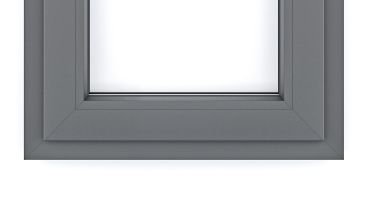

Classic line (inside view)
Classic line (inside view)

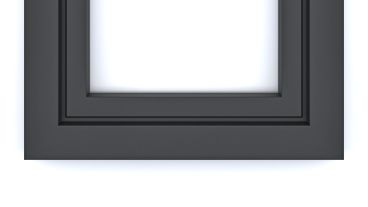

Half-flush (outside view)
Half-flush (outside view)

Colour palette

Colours & finishes

Standard

  • White

Aludec

High-quality decorative structures distinguished by a unique fine-grained matt-sand surface with the appearance of powder-coated aluminum.

  • Anthracite Grey ap03

    ap03 Anthracite Grey

  • Jet Black ap04

    ap04 Jet Black

  • Alux DB ap07

    ap07 Alux DB

  • Basalt Grey ap08

    ap08 Basalt Grey

  • Umbra Grey ap12

    ap12 Umbra Grey

  • Quartz Grey ap14

    ap14 Quartz Grey

  • Traffic White ap36

    ap36 Traffic White

  • Window Grey ap37

    ap37 Window Grey

Modern Greys

  • Anthracite Grey ap40

    ap40 Anthracite Grey

  • Anthracite Grey, sand texture ap60

    ap60 Anthracite Grey, sand texture

  • Gray, sand texture ap61

    ap61 Gray, sand texture

  • Metbrush Aluminium ap63

    ap63 Metbrush Aluminium

  • Quartz Grey, sand texture ap65

    ap65 Quartz Grey, sand texture

  • Jet Black Matt ap71

    ap71 Jet Black Matt

  • Alux DB ap79

    ap79 Alux DB

  • Papyrus White ap86

    ap86 Papyrus White

  • Silk Grey ap90

    ap90 Silk Grey

  • Concrete Grey ap91

    ap91 Concrete Grey

Natural Timber

  • Oak Special ap01

    ap01 Oak Special

  • Natural Oak ap02

    ap02 Natural Oak

  • Douglas ap11

    ap11 Douglas

  • Golden Oak ap23

    ap23 Golden Oak

  • Palisander ap25

    ap25 Palisander

  • Dark Brown Matt ap26

    ap26 Dark Brown Matt

  • Walnut ap27

    ap27 Walnut

  • Walnut Terra ap28

    ap28 Walnut Terra

  • Walnut Amaretto ap29

    ap29 Walnut Amaretto

  • Sheffield Oak Light ap75

    ap75 Sheffield Oak Light

  • Sheffield Oak Brown ap93

    ap93 Sheffield Oak Brown

  • Sheffield Oak Grey ap94

    ap94 Sheffield Oak Grey

  • Newcastle Oak Khaki ap95

    ap95 Newcastle Oak Khaki

Other

  • Mahogany ap05

    ap05 Mahogany

  • Dark Oak ap06

    ap06 Dark Oak

  • Oregon III ap15

    ap15 Oregon III

  • Dark Green ap30

    ap30 Dark Green

  • Dark Red ap32

    ap32 Dark Red

  • Grey ap34

    ap34 Grey

  • Steel Blue ap41

    ap41 Steel Blue

  • Agate Grey ap42

    ap42 Agate Grey

  • Green ap43

    ap43 Green

  • White ap44

    ap44 White

  • Diamond Blue ap47

    ap47 Diamond Blue

  • Cream White ap50

    ap50 Cream White

  • Birch ap52

    ap52 Birch

  • Basalt Grey ap62

    ap62 Basalt Grey

  • Dark Graphite ap69

    ap69 Dark Graphite

  • Beige Grey ap87

    ap87 Beige Grey

  • Quartz Grey ap88

    ap88 Quartz Grey

Woodec

A faithfully preserved appearance of real wood and a unique character combined with all the advantages of a Pvcu window – this is what the new woodec finish offers.

  • Turner Oak Malt ap19

    ap19 Turner Oak Malt

  • Sheffield Oak Alpine ap20

    ap20 Sheffield Oak Alpine

  • Sheffield Oak Concrete ap21

    ap21 Sheffield Oak Concrete

  • Turner Oak Toffee ap22

    ap22 Turner Oak Toffee

  • Turner Oak Walnut ap35

    ap35 Turner Oak Walnut

  • Turner Oak Amber ap39

    ap39 Turner Oak Amber

Pricing

Price out IDEAL 4000

Send rough sizes and how many. We install around Springfield, MO and ship everywhere else.

Prefer email? hello@swingtilt.com

No pressure, no obligation. We respond within one business day.

By submitting, you agree SwingTilt may call, text & email you about your inquiry, including by automated means; consent isn't a condition of purchase. Msg/data rates may apply — reply STOP to opt out.
