aluplast · Sliding door

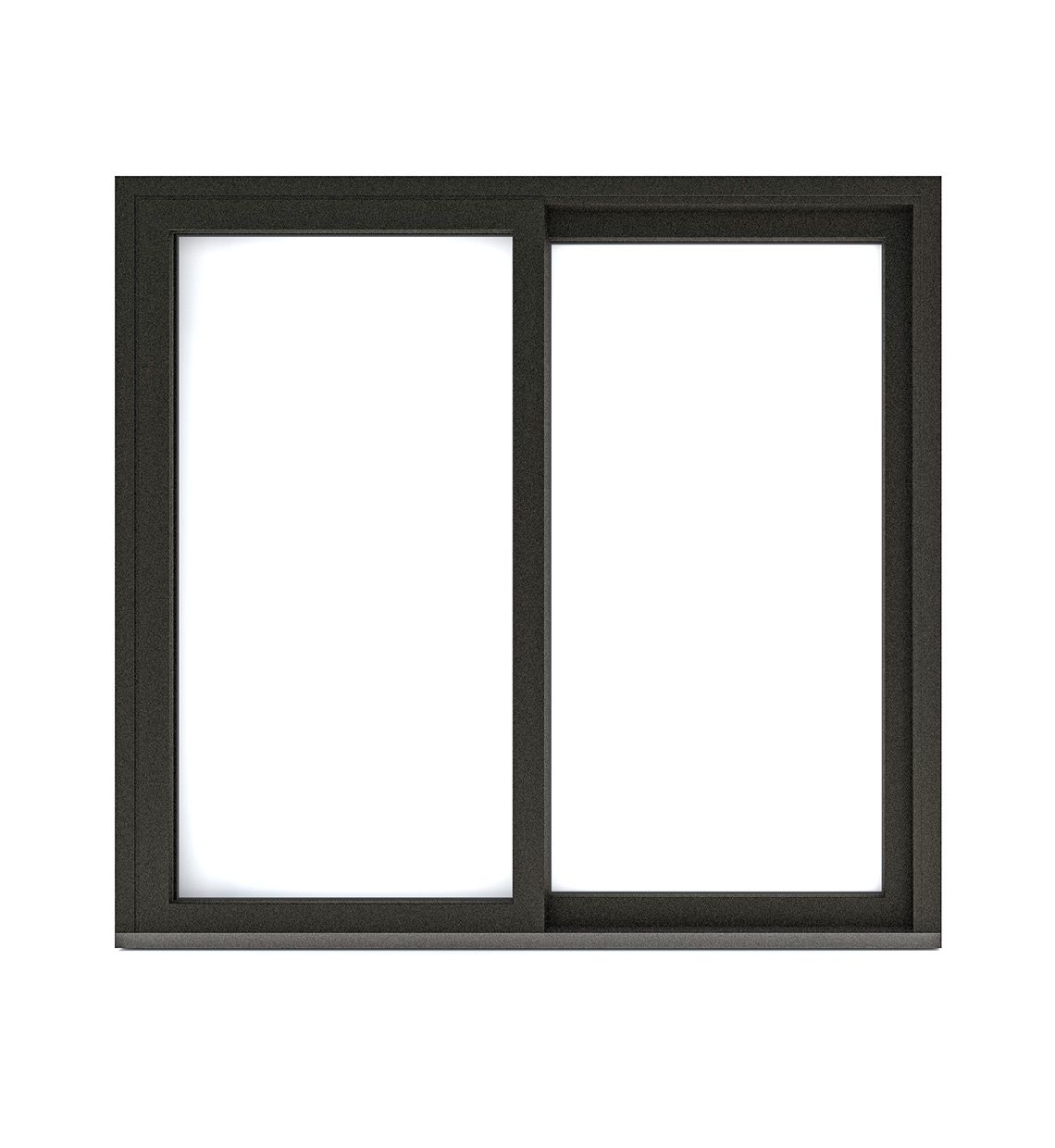

85 mm lift-and-slide door
85 mm lift & slide door is a solution that will make your dream home fill with light, free from entrance barriers, close to surrounding nature, and at the same time comfortable, warm and safe.
These large-sized doors allow you to eliminate all restrictions, save space and freely shape the space in your home. They are ideal for those who want a comfortable combination of interior and patio, and a panoramic view.
Technical characteristics
The numbers
- Frame depth
- 197 mm
- Sash depth
- 85 mm
- Sliding sash width
- up to 3000 mm
- Glass up to
- 51 mm
- Uf (frame)
- up to 1.1 W/m²K
- Uw (whole door)
- up to 0.63 W/m²K
- Best for
- patio, balcony
Uf / Uw are aluplast's published European values (W/m²K) — not the US U-factor scale. Lower is better.
Features
What makes HST 85 lift & slide different

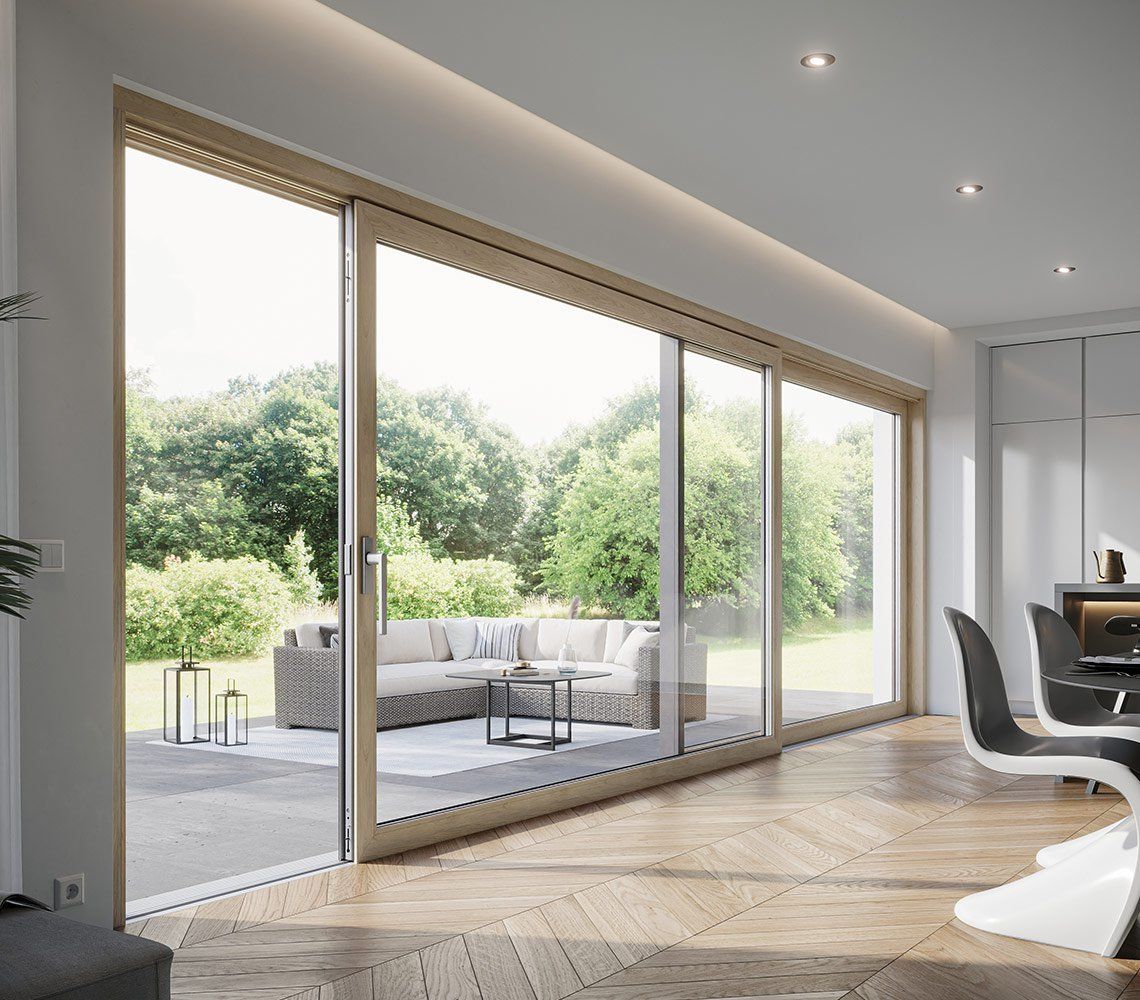

Panoramic views
HST sliding doors are the only window structures that allow the creation of large-scale glazing, providing an exceptional view of the space around the house. The width of the sash can be between 800 mm and 3000 mm wide and the height can be up to 2700 mm in white, which allows to create even more than six meters of glazing.

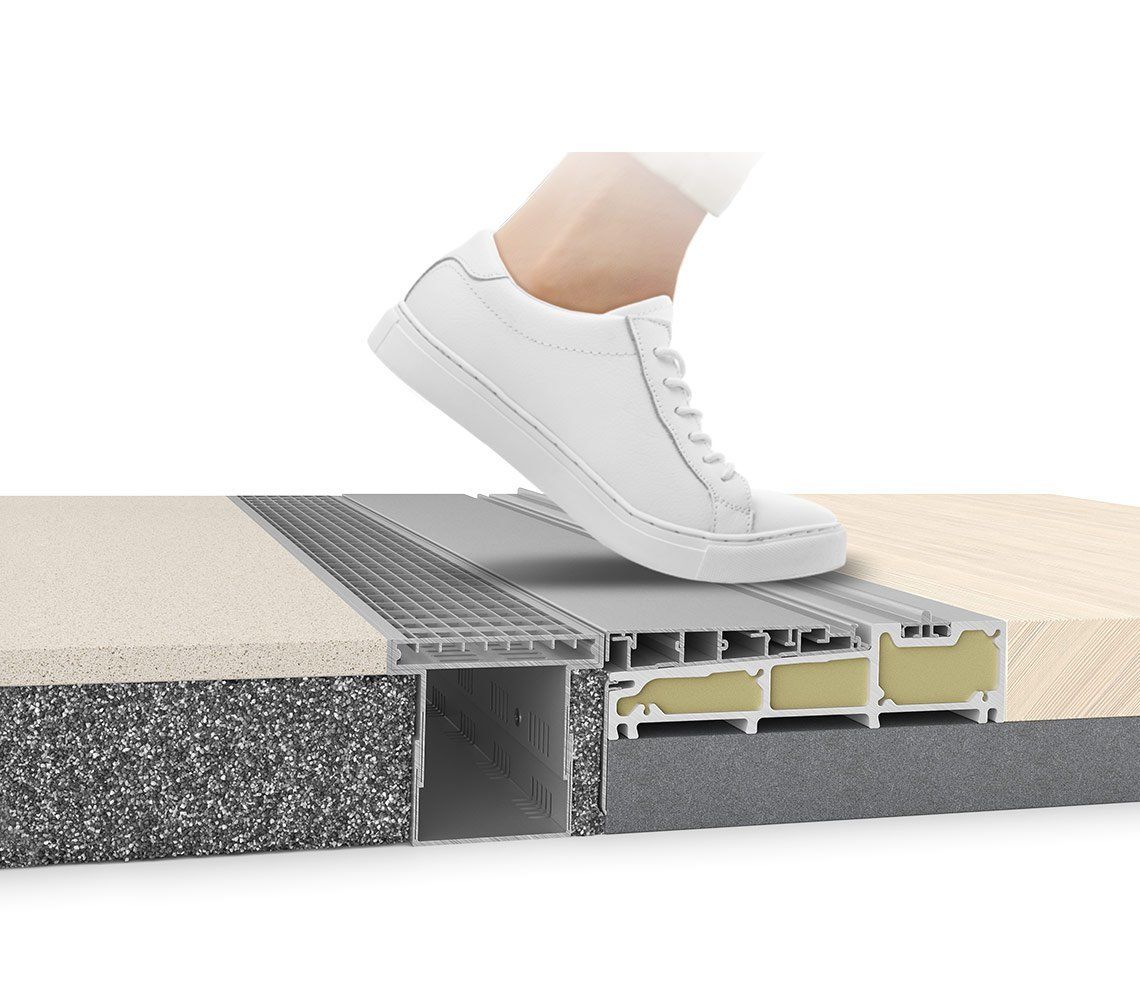

Barrier-free home
HST doors are a modern and safe solution, designed to eliminate unnecessary barriers. The low door threshold with a height of 48 mm, which can be recessed from the side of the room in its entire height, meets the requirements for architectural barrier-free construction and allows trouble-free entry and exit. Thanks to this solution, it is also possible to level the threshold with the floor surface and thus completely eliminate threshold barriers.

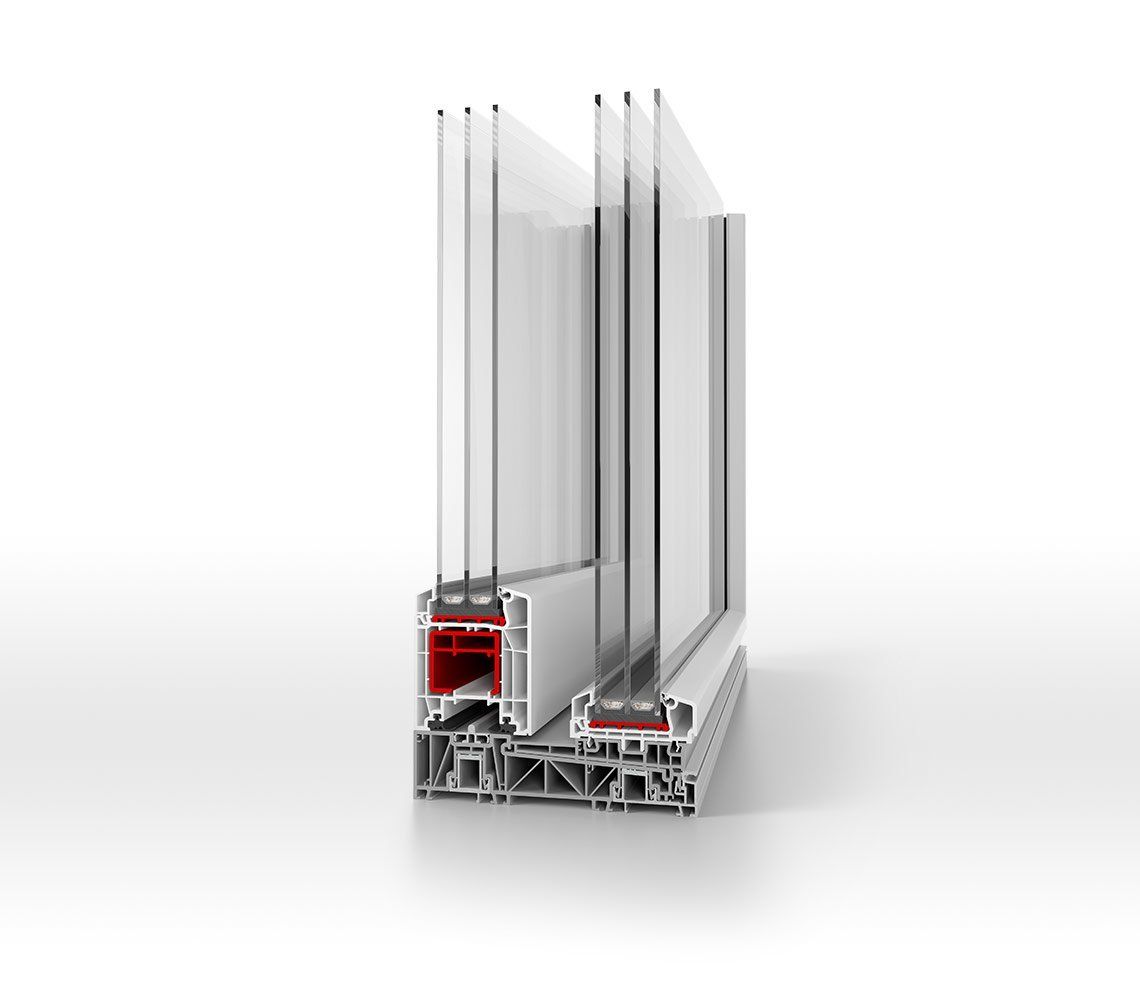

HST 85 mm Fixframe – even more light
The HST 85 fixframe with a very narrow frame in the fixed-glazed part is the fulfillment of the postulate to maximize glazed areas, increase the amount of light entering the rooms and effectively use thermal energy from the sun. A particularly narrow profile in fixed glazing provides even greater light penetration into the living space – for high quality of life and additional solar heat gain!

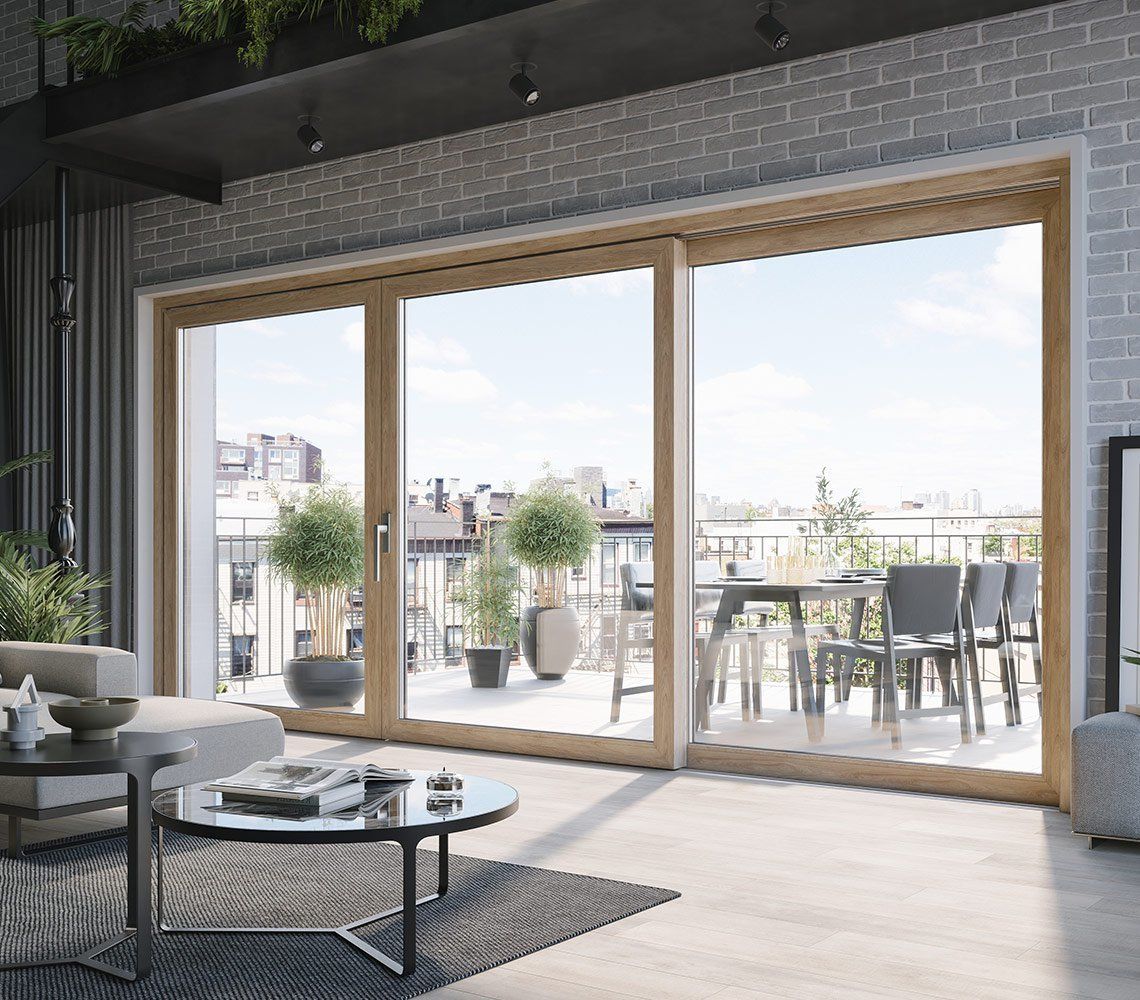

Functionality and comfort of use
Special hardware mechanisms allow huge sashes to be moved with minimal force. Turning the large handle downward from the closed position raises the sash by a few millimeters, releasing the pressure of the seals and allowing the sashes to move freely, moving relative to each other or to the unopened parts of the structure without the slightest resistance.

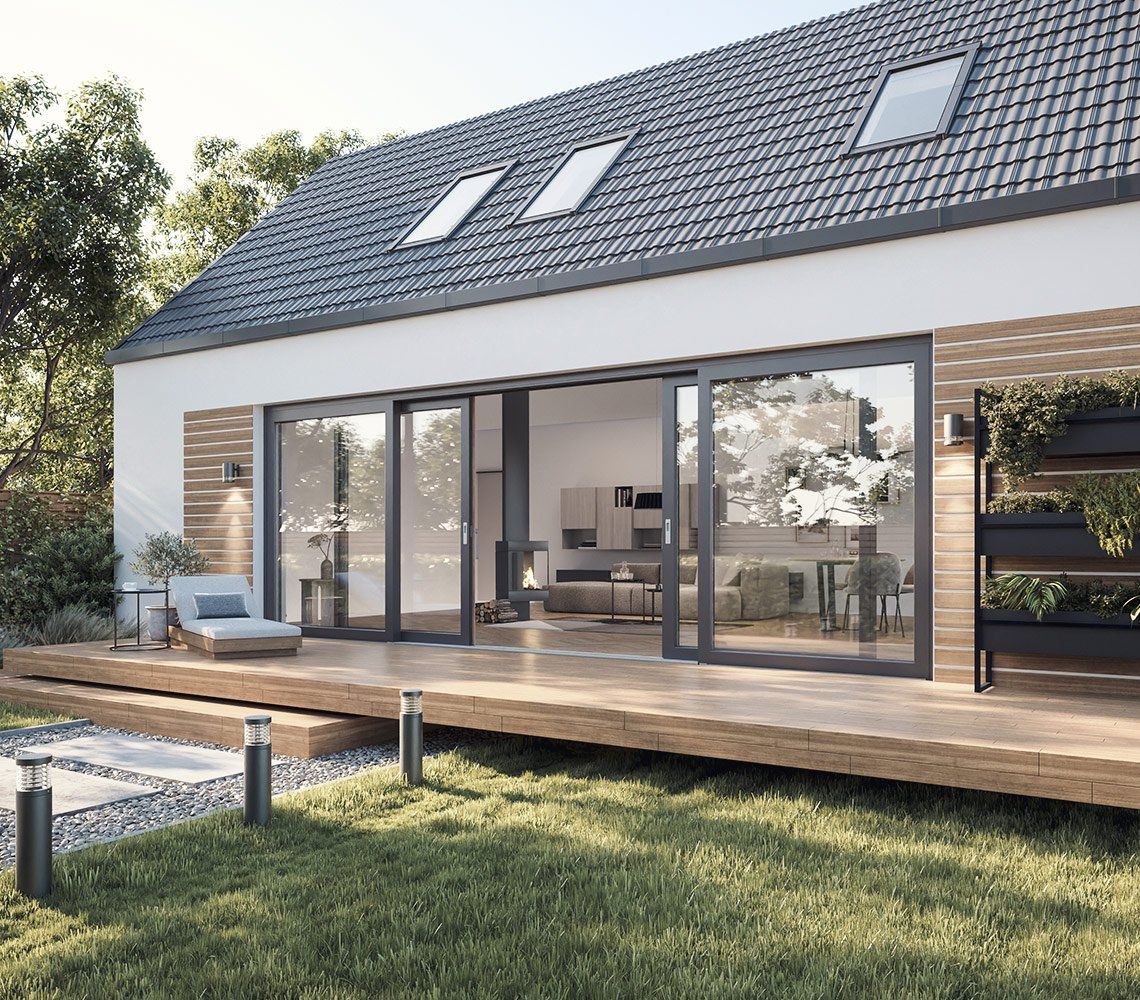

Multiple opening options
HST 85 mm lift-and-slide doors can come in at least several different versions and arrangements of sashes and non-opening parts. The most popular HST door schemes are 2-quadrant variants – with one or both movable sashes – or 4-lite variants – with two middle or all movable sashes.
Harmony of space
HST doors are an excellent alternative in terms of space arrangement to classic balcony doors, which enter deeply into the living space when the wings are opened. Despite a greater installation depth than classic balcony doors, it is the HST doors that leave more freedom in the design of space.

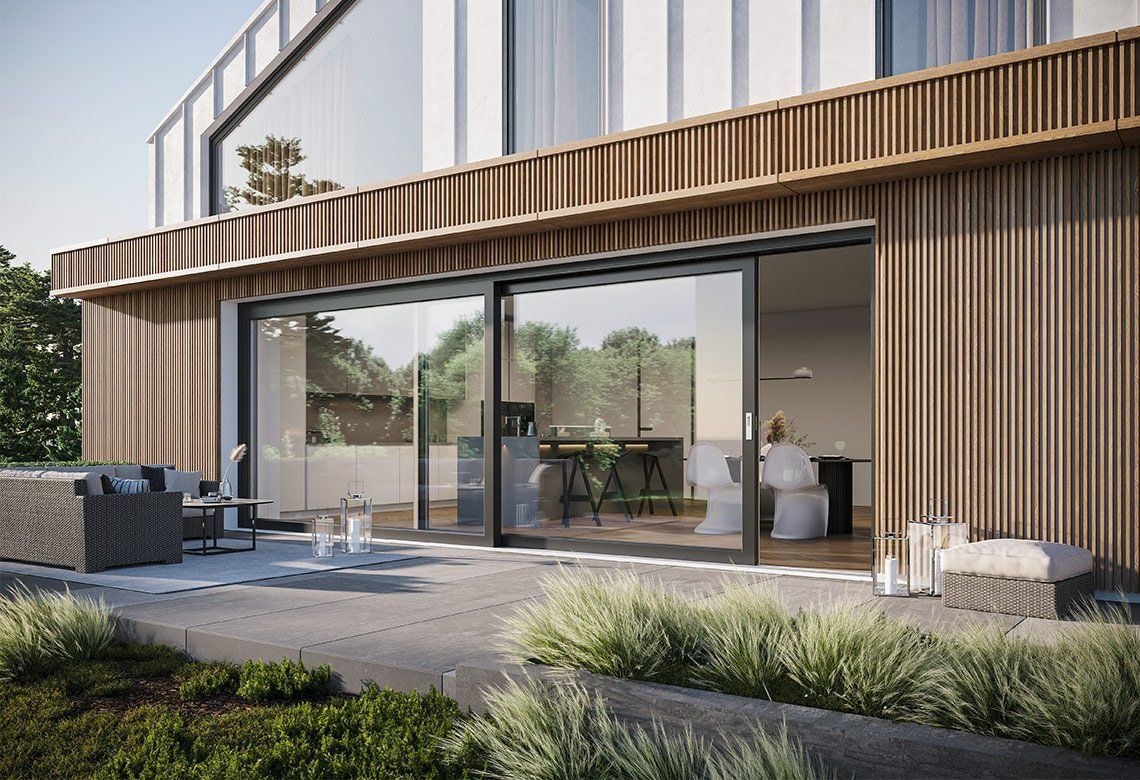

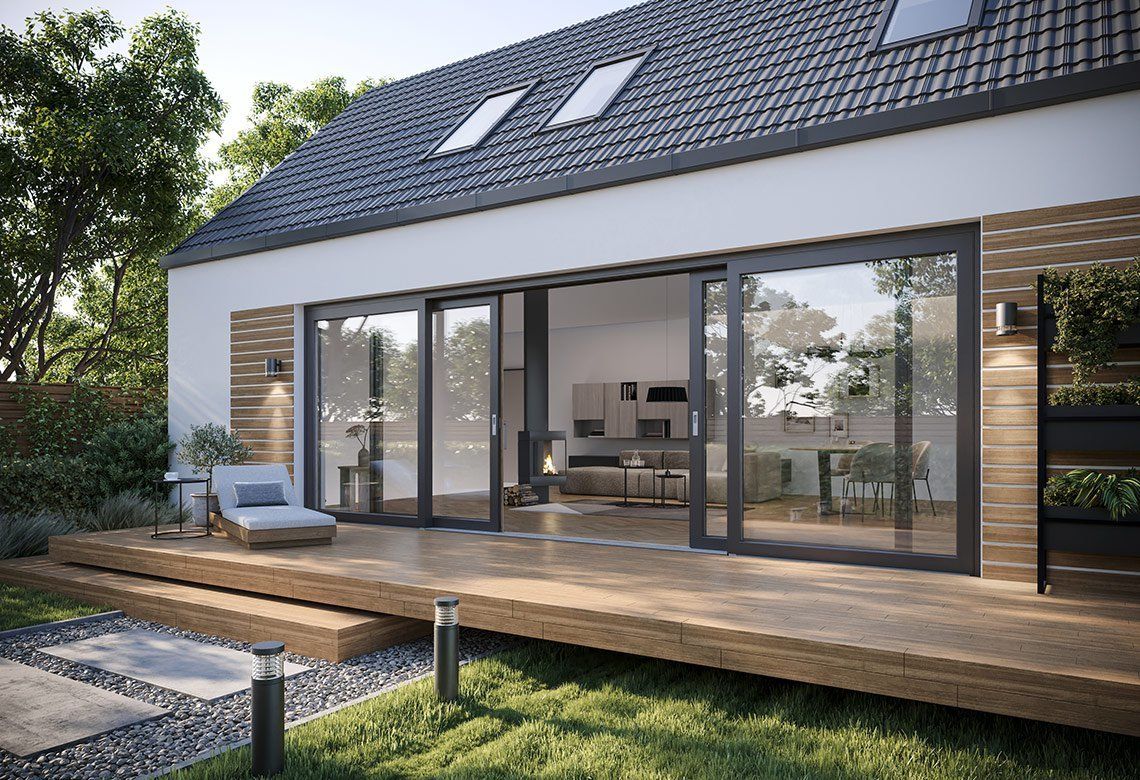

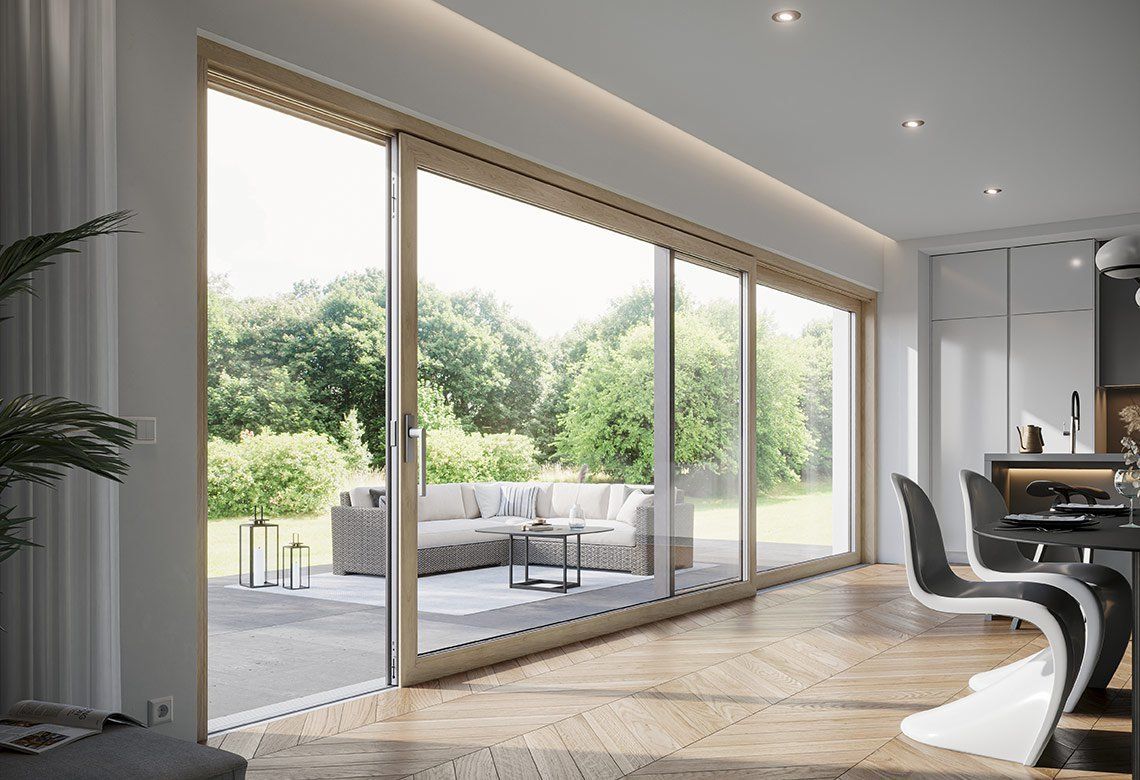

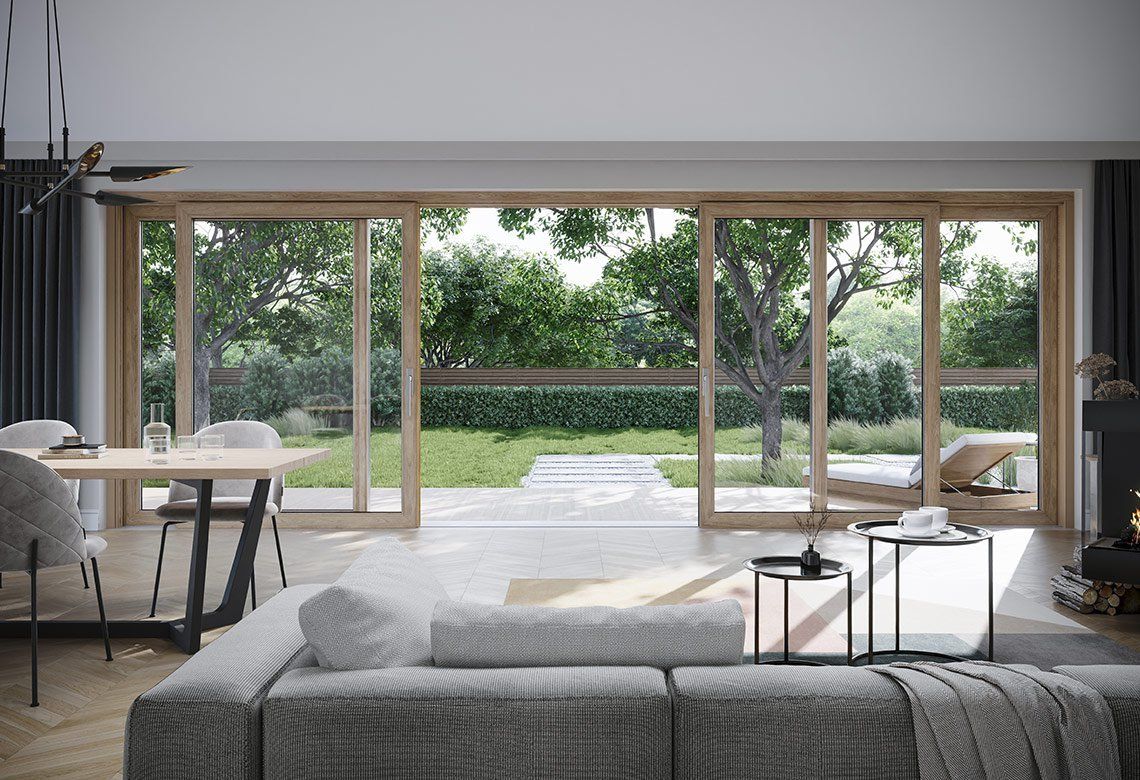

Installed
Colour palette
Colours & finishes
Standard
White
Aludec
High-quality decorative structures distinguished by a unique fine-grained matt-sand surface with the appearance of powder-coated aluminum.
ap03 Anthracite Grey
ap04 Jet Black
ap07 Alux DB
ap08 Basalt Grey
ap12 Umbra Grey
ap14 Quartz Grey
ap36 Traffic White
ap37 Window Grey
Modern Greys
ap40 Anthracite Grey
ap60 Anthracite Grey, sand texture
ap61 Gray, sand texture
ap63 Metbrush Aluminium
ap65 Quartz Grey, sand texture
ap71 Jet Black Matt
ap79 Alux DB
ap86 Papyrus White
ap90 Silk Grey
ap91 Concrete Grey
Natural Timber
ap01 Oak Special
ap02 Natural Oak
ap11 Douglas
ap23 Golden Oak
ap25 Palisander
ap26 Dark Brown Matt
ap27 Walnut
ap28 Walnut Terra
ap29 Walnut Amaretto
ap75 Sheffield Oak Light
ap93 Sheffield Oak Brown
ap94 Sheffield Oak Grey
ap95 Newcastle Oak Khaki
Other
ap05 Mahogany
ap06 Dark Oak
ap15 Oregon III
ap30 Dark Green
ap32 Dark Red
ap34 Grey
ap41 Steel Blue
ap42 Agate Grey
ap43 Green
ap44 White
ap47 Diamond Blue
ap50 Cream White
ap52 Birch
ap62 Basalt Grey
ap69 Dark Graphite
ap87 Beige Grey
ap88 Quartz Grey
Woodec
A faithfully preserved appearance of real wood and a unique character combined with all the advantages of a Pvcu window – this is what the new woodec finish offers.
ap19 Turner Oak Malt
ap20 Sheffield Oak Alpine
ap21 Sheffield Oak Concrete
ap22 Turner Oak Toffee
ap35 Turner Oak Walnut
ap39 Turner Oak Amber
Pricing
Price out HST 85 lift & slide
Send rough sizes and how many. We install around Springfield, MO and ship everywhere else.
Prefer email? hello@swingtilt.com

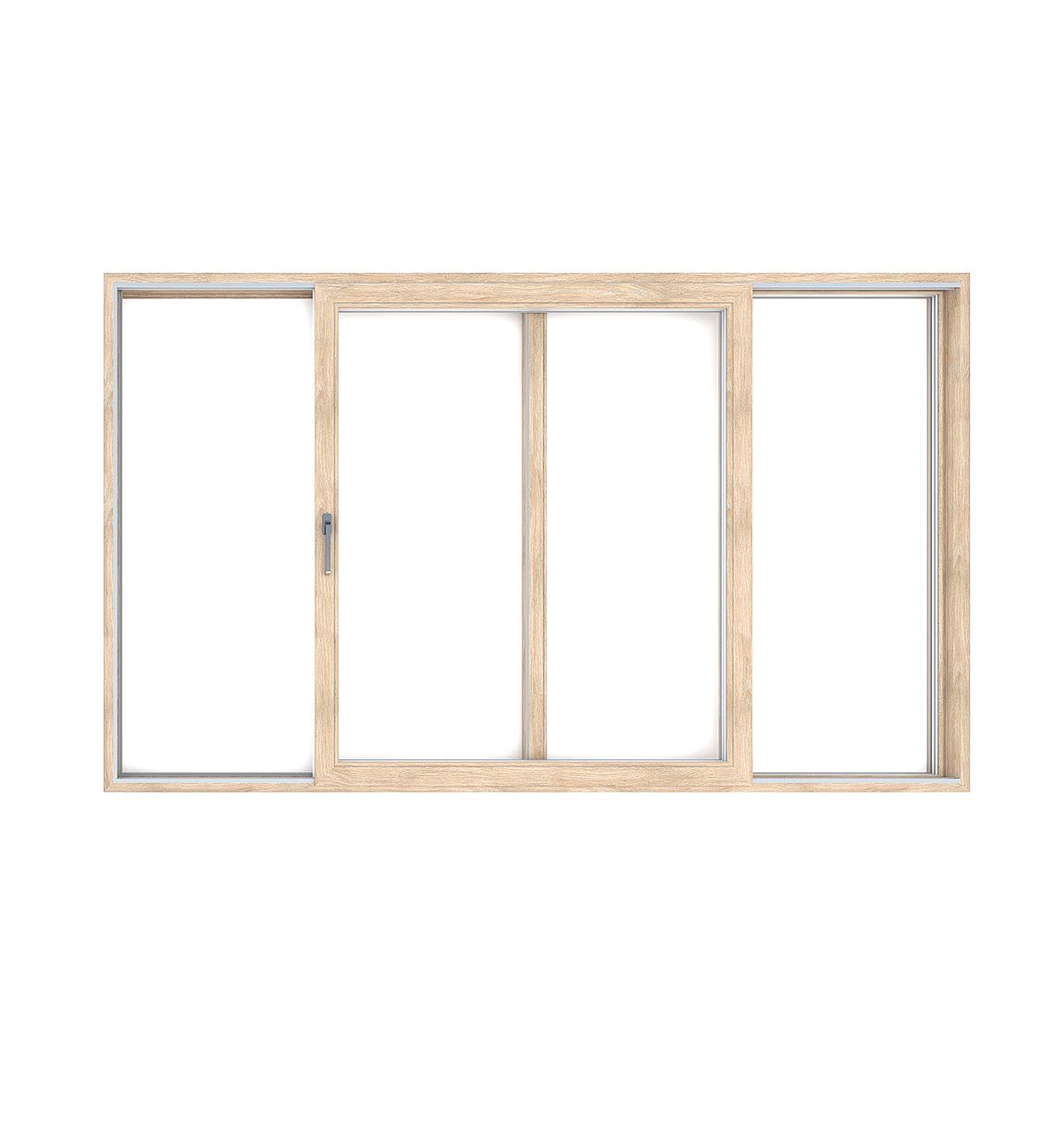

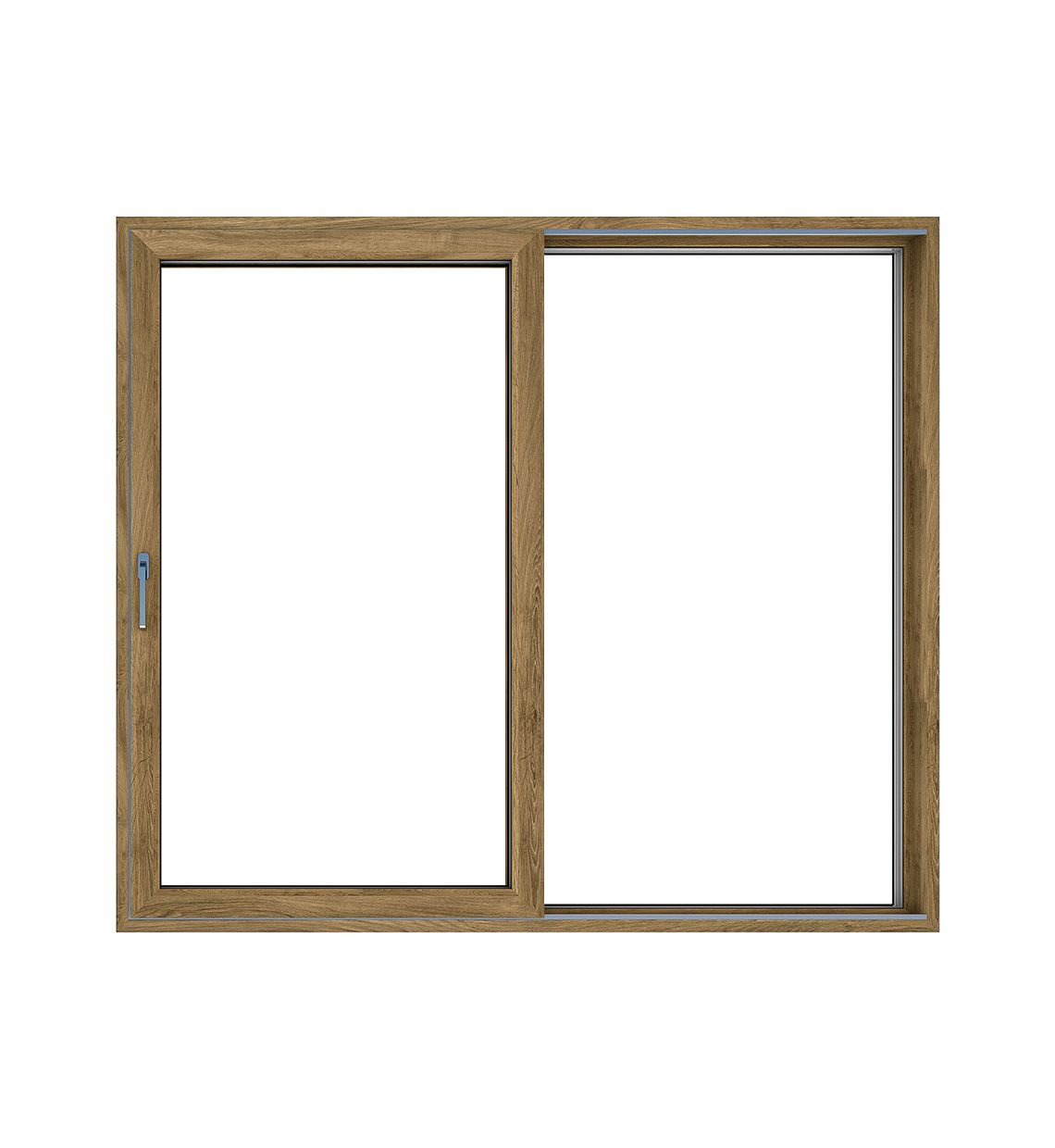

Other sliding door systems
