aluplast · Entrance door

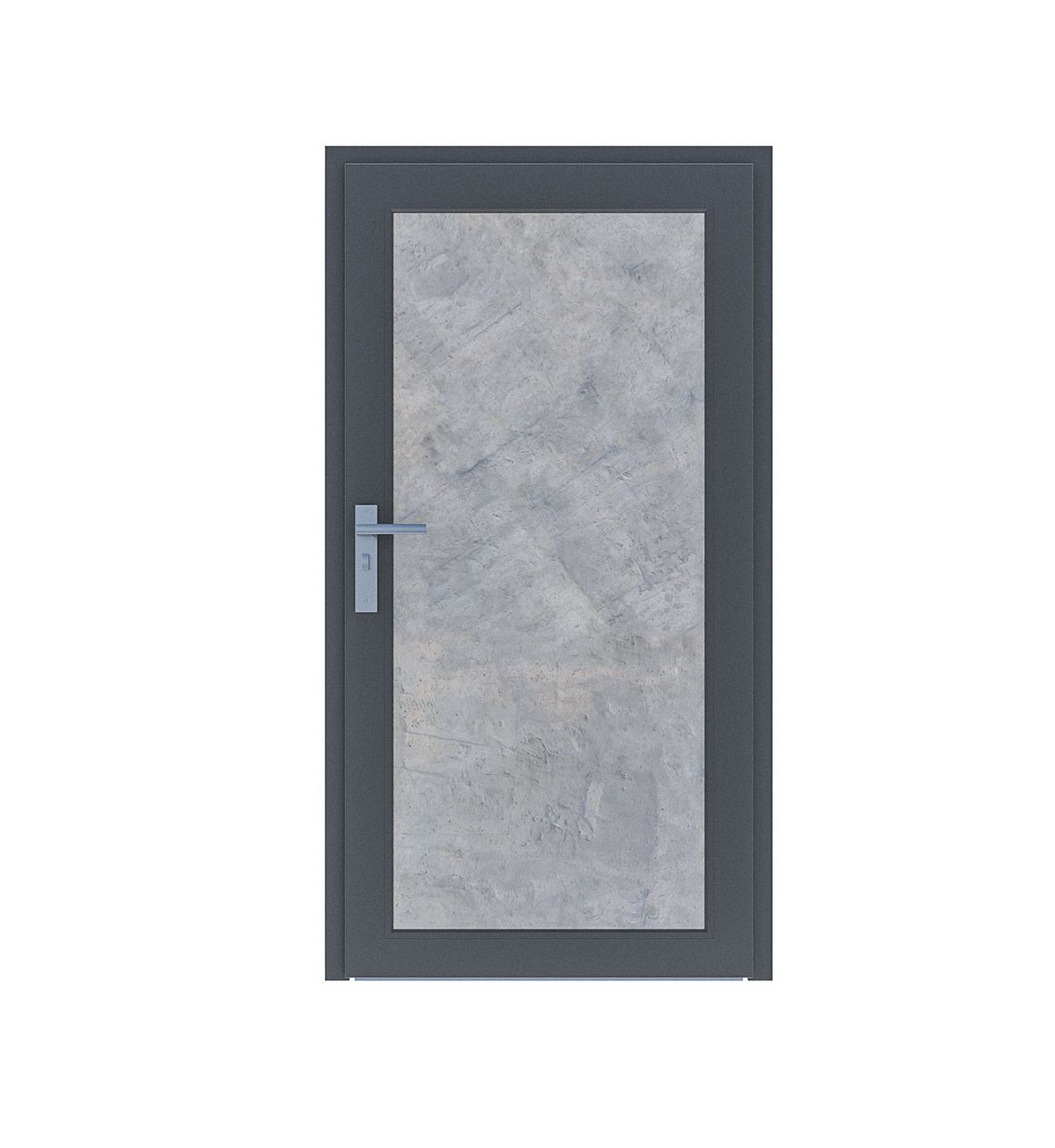

Entrance door 85 mm
With this new aluplast main entrance door system you are always on the safe side. Enjoy modern beauty and protect your home against burglars, noise and the elements…
Technical characteristics
The numbers
- Frame depth
- 85 mm
- Glass up to
- 51 mm
- Seals
- 2
- Chambers
- 6
- Uf (frame)
- 1.2 W/m²K
Uf / Uw are aluplast's published European values (W/m²K) — not the US U-factor scale. Lower is better.
Features
What makes 85 mm entrance door different

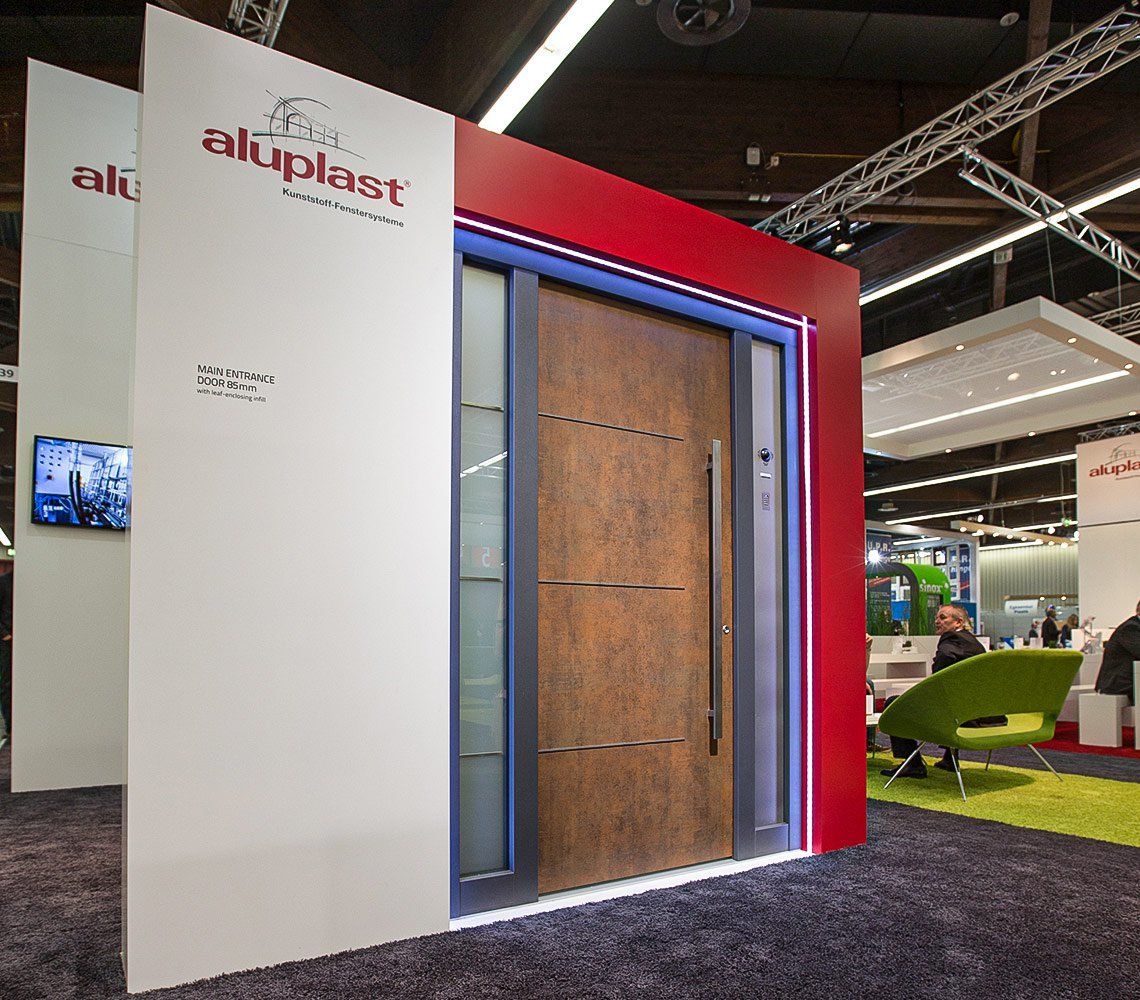

A strong entrance

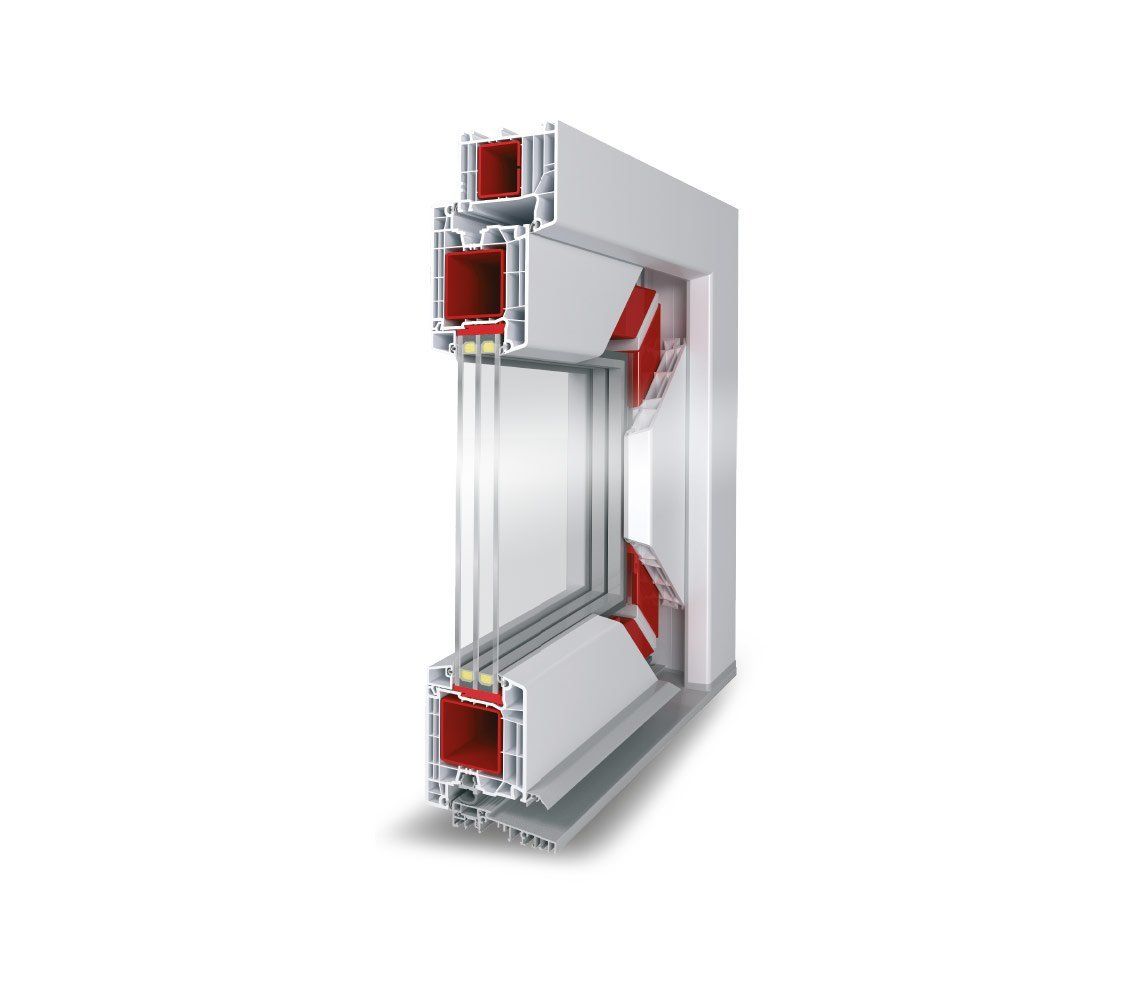

Thanks to the multi-chamber design, the 85 mm installation depth and a door threshold with a thermal-break insert, thermal insulation has been improved significantly, reaching Uf = 1.2 W/m²K. The new profiles can take glazing units and infill panels up to 50 mm thick.
Easy in and out
The low 20 mm door threshold meets the requirements for barrier-free construction and makes walking in and out easy.

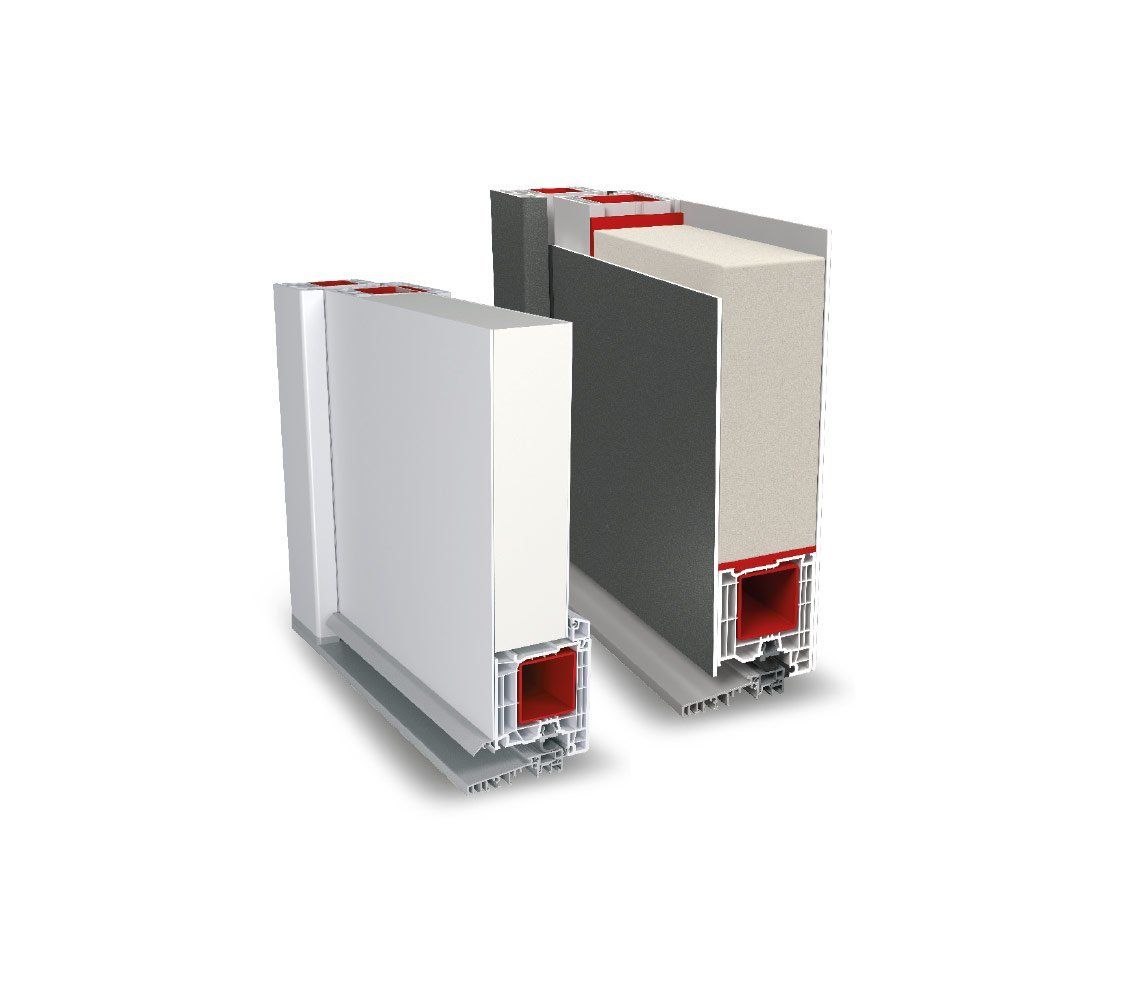

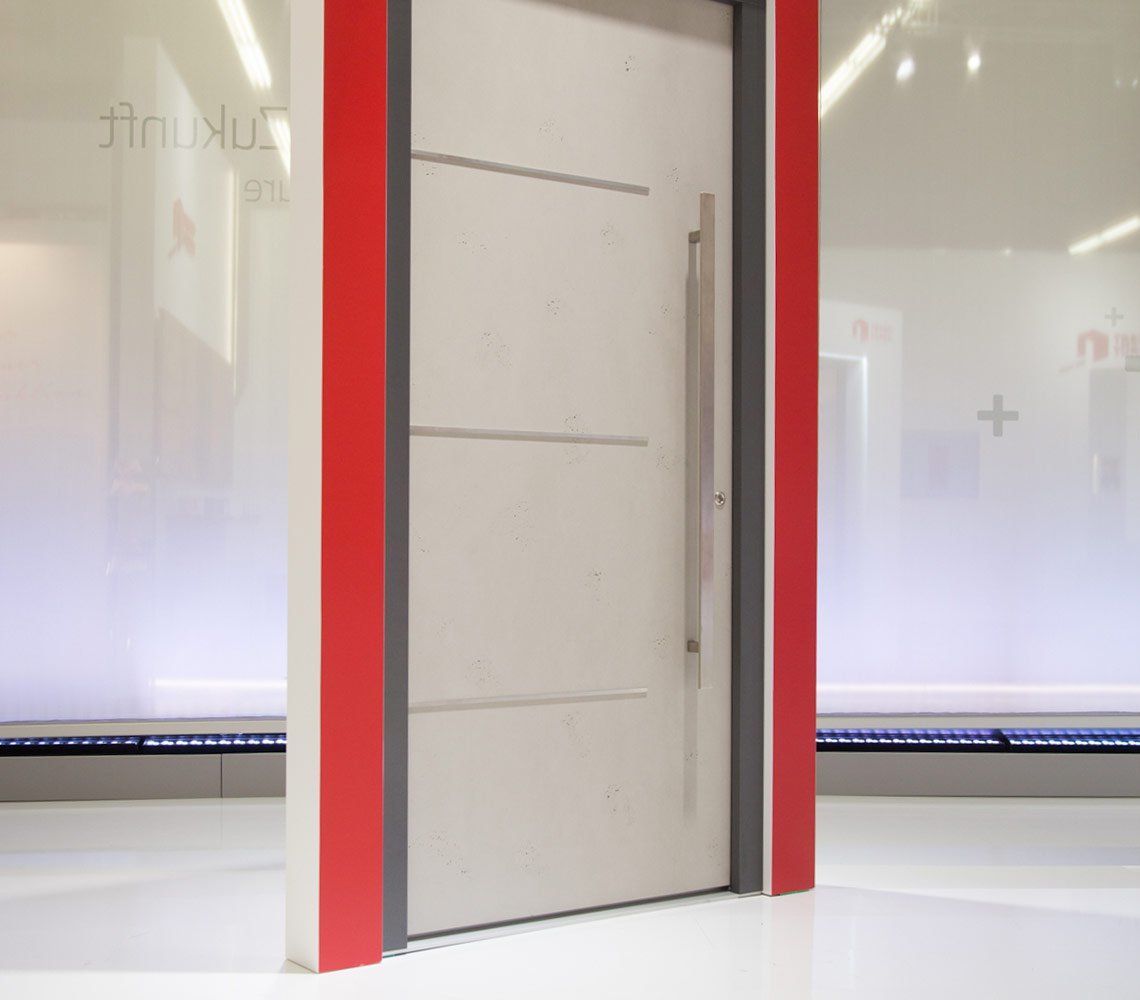

Overlay panel version
Thanks to a new special profile designed for exterior doors with overlay panels that cover the face of the sash, the new IDEAL 7000 entrance doors meet the high aesthetic demands of architects.
The new exterior-door solution was developed together with all leading infill-panel manufacturers. Because the installation depth of the new sash version is reduced by 4 mm to 81 mm, all popular infill panels can be used without changing gaskets at the system's standard 85 mm profile depth.
Easy rainwater drainage
Specially shaped threshold feet connect to the system's add-on profiles, such as extensions. A wide aluminum drip edge carries water away to the outside.
Colour palette
Colours & finishes
Standard
White
Aludec
High-quality decorative structures distinguished by a unique fine-grained matt-sand surface with the appearance of powder-coated aluminum.
ap03 Anthracite Grey
ap04 Jet Black
ap07 Alux DB
ap08 Basalt Grey
ap12 Umbra Grey
ap14 Quartz Grey
ap36 Traffic White
ap37 Window Grey
Modern Greys
ap40 Anthracite Grey
ap60 Anthracite Grey, sand texture
ap61 Gray, sand texture
ap63 Metbrush Aluminium
ap65 Quartz Grey, sand texture
ap71 Jet Black Matt
ap79 Alux DB
ap86 Papyrus White
ap90 Silk Grey
ap91 Concrete Grey
Natural Timber
ap01 Oak Special
ap02 Natural Oak
ap11 Douglas
ap23 Golden Oak
ap25 Palisander
ap26 Dark Brown Matt
ap27 Walnut
ap28 Walnut Terra
ap29 Walnut Amaretto
ap75 Sheffield Oak Light
ap93 Sheffield Oak Brown
ap94 Sheffield Oak Grey
ap95 Newcastle Oak Khaki
Other
ap05 Mahogany
ap06 Dark Oak
ap15 Oregon III
ap30 Dark Green
ap32 Dark Red
ap34 Grey
ap41 Steel Blue
ap42 Agate Grey
ap43 Green
ap44 White
ap47 Diamond Blue
ap50 Cream White
ap52 Birch
ap62 Basalt Grey
ap69 Dark Graphite
ap87 Beige Grey
ap88 Quartz Grey
Woodec
A faithfully preserved appearance of real wood and a unique character combined with all the advantages of a Pvcu window – this is what the new woodec finish offers.
ap19 Turner Oak Malt
ap20 Sheffield Oak Alpine
ap21 Sheffield Oak Concrete
ap22 Turner Oak Toffee
ap35 Turner Oak Walnut
ap39 Turner Oak Amber
Pricing
Price out 85 mm entrance door
Send rough sizes and how many. We install around Springfield, MO and ship everywhere else.
Prefer email? hello@swingtilt.com

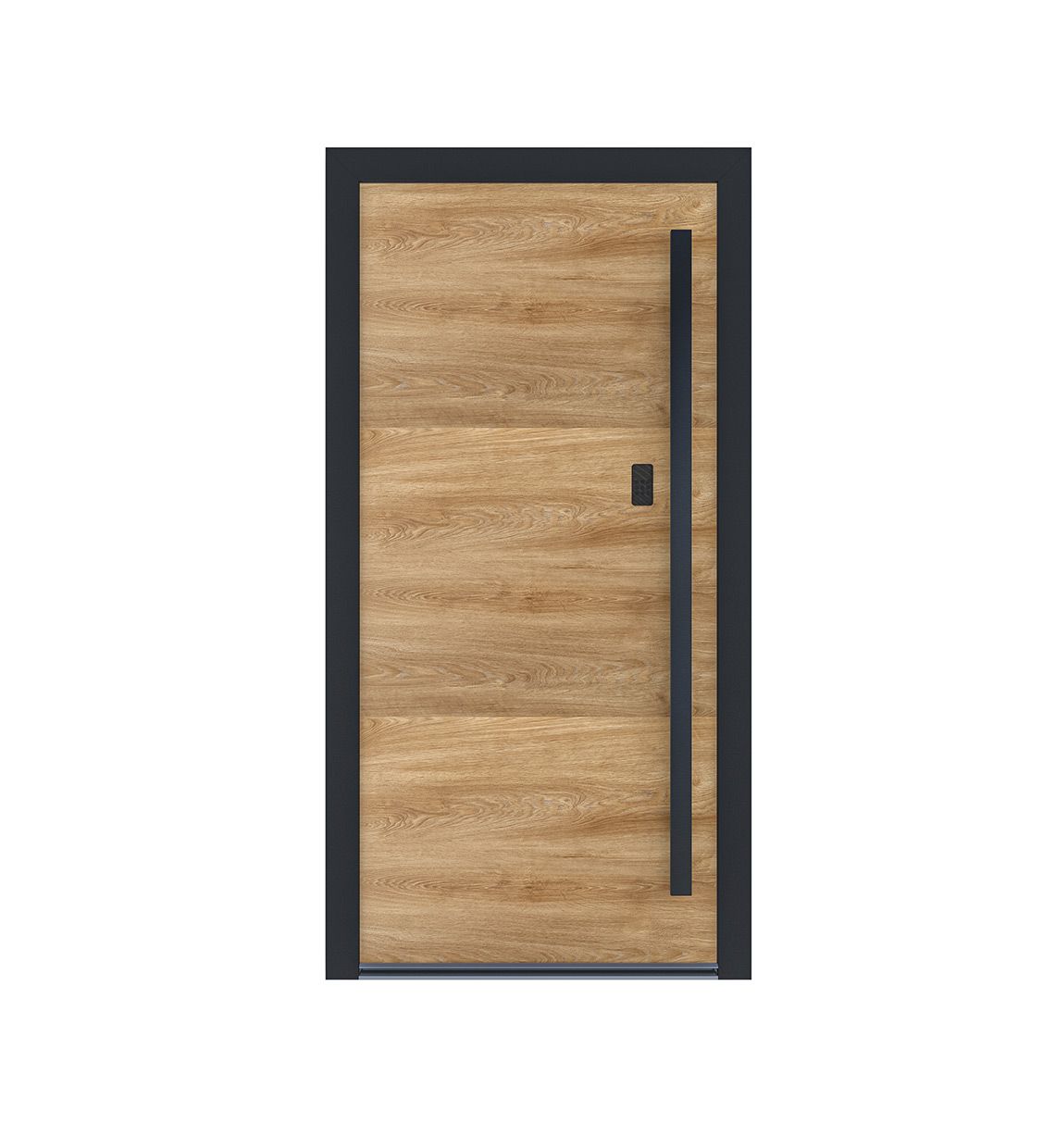

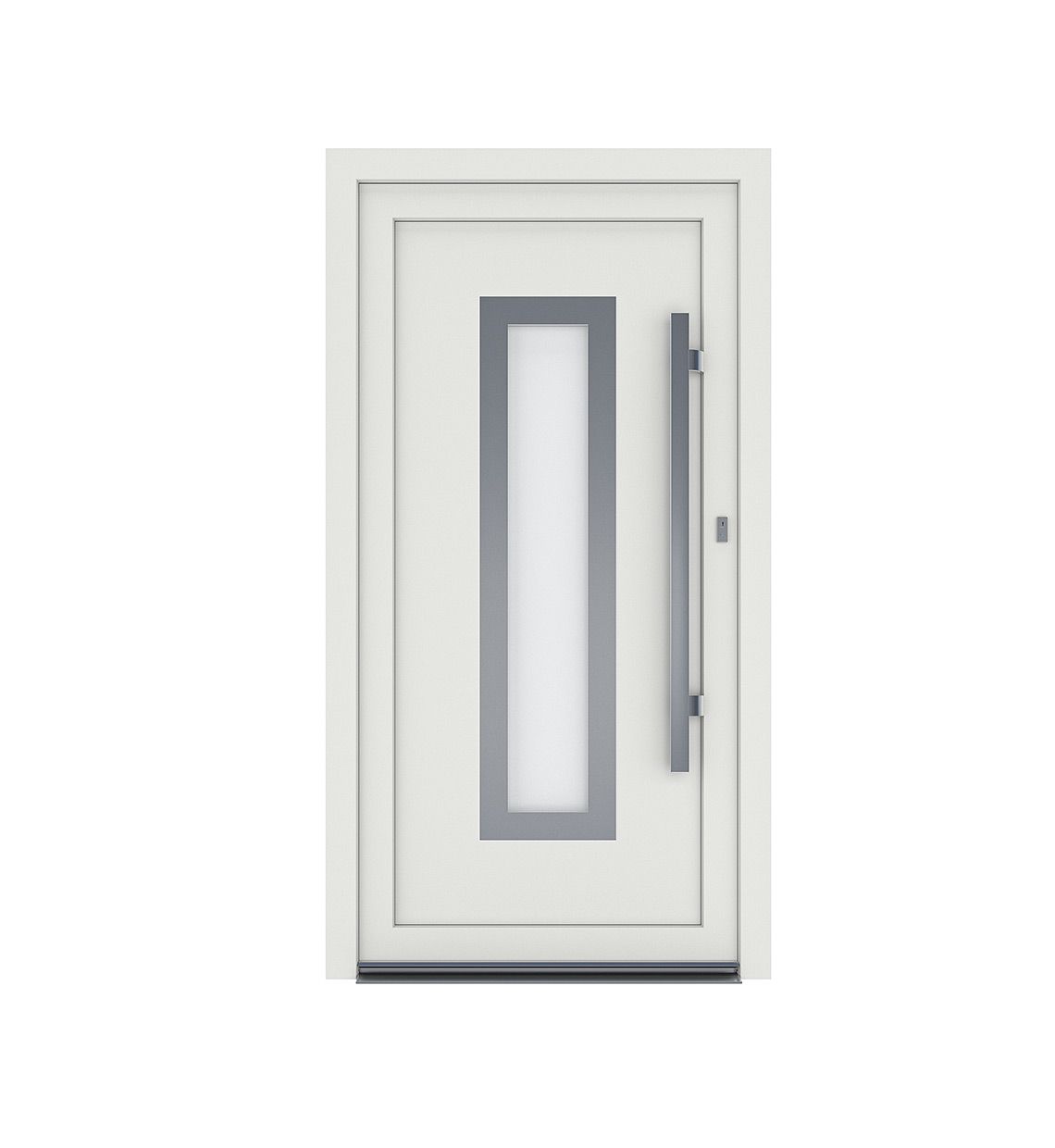

Other entrance door systems
